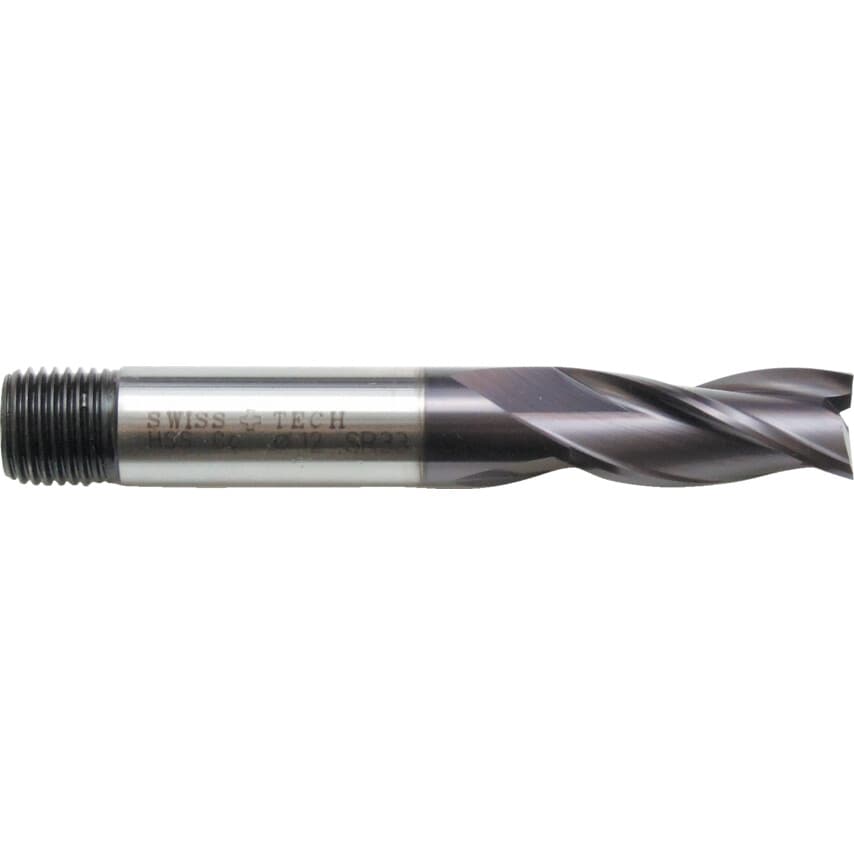

Series 33 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter | 12.0mm |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 14.0mm |
| Milling Cutter Type | Slot Drill |
| Shank Type | Threaded |
| Shank Diameter Tolerance | H6 |
| Overall Length | 83.0mm |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Series | 33 |
| Cutter Style | Square End |
| Length Type | Regular |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| Flute Length | 26.0mm |
| Number of Flutes | 3 |
| Product Type | Slot Drills |
| Coolant Delivery | External |
| Standards Met | DIN 844 | DIN 1835D |
| Material Grade | M42 |
| Finish/Coating | TiAlN |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
