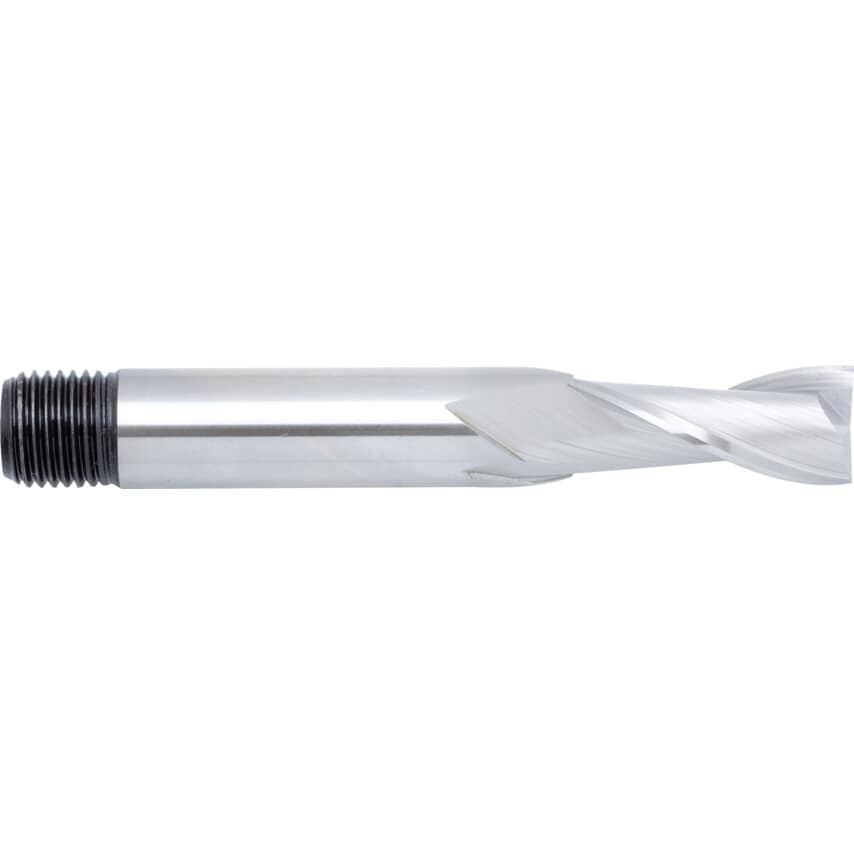

Series 29 - Regular Series slot drills are designed to be the mainstay of general cutting applications, manufactured from an uncoated high speed steel and cobalt construction they offer excellent tool durability and cutting performance in centre cutting applications.
Features and Benefits
High speed steel and cobalt construction for improved durability
2 flutes for excellent cutting efficiency and improved chip control
Suitable for general purpose applications
Standards
Dimensions to DIN 844
Threaded shank to DIN 1835B
| Overall Length | 57.0mm |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 2 |
| System of Measurement | Metric |
| Shank Type | Threaded |
| Length Type | Regular |
| Flute Type | Helical |
| Material Grade | M42 |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Flute Length | 13.0mm |
| Series | 29 |
| Finish/Coating | Uncoated |
| Shank Diameter | 6.0mm |
| Material | Cobalt High Speed Steel |
| Cutter Diameter | 5.0mm |
| Standards Met | DIN 844 | DIN 1835D |
| End Mill Type | Slot Drill |
