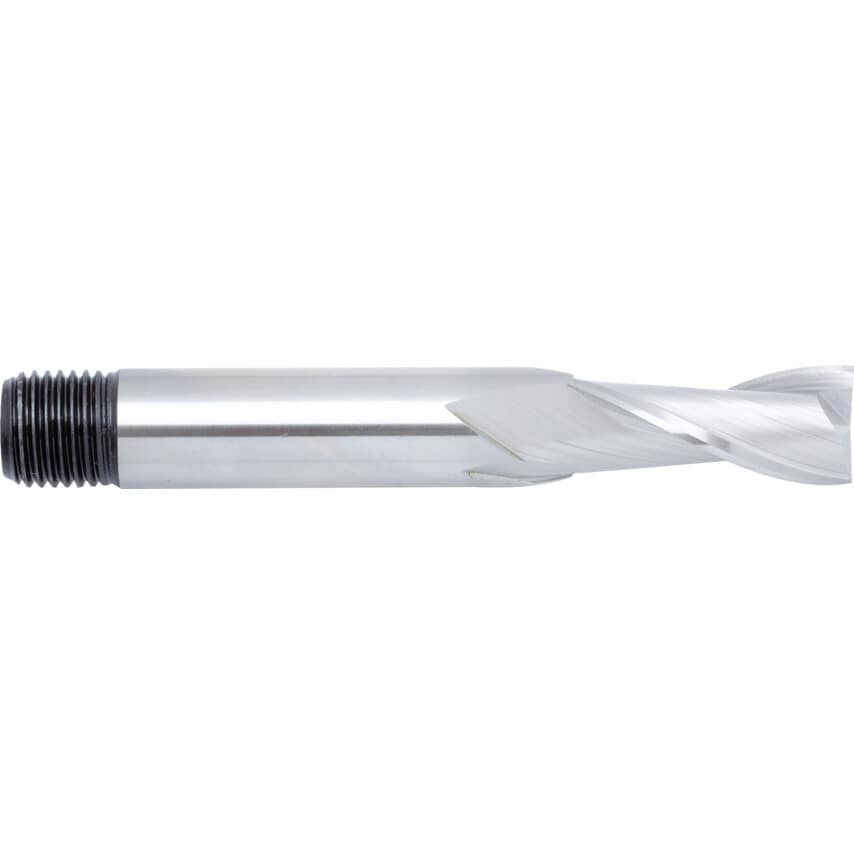

Series 29 - Regular Series slot drills are designed to be the mainstay of general cutting applications, manufactured from an uncoated high speed steel and cobalt construction they offer excellent tool durability and cutting performance in centre cutting applications.
Features and Benefits
High speed steel and cobalt construction for improved durability
2 flutes for excellent cutting efficiency and improved chip control
Suitable for general purpose applications
Standards
Dimensions to DIN 844
Threaded shank to DIN 1835B
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 2 |
| Series | 29 |
| Plunge Type | Centre Cutting |
| Standards Met | DIN 844 | DIN 1835D |
| Cutter Style | Square End |
| Shank Type | Threaded |
| End Mill Type | Slot Drill |
| Material Grade | M42 |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter | 6.0mm |
| Milling Cutter Type | Slot Drill |
| Flute Length | 8.0mm |
| Length Type | Regular |
| System of Measurement | Metric |
| Overall Length | 52.0mm |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Cutter Diameter | 3.0mm |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
