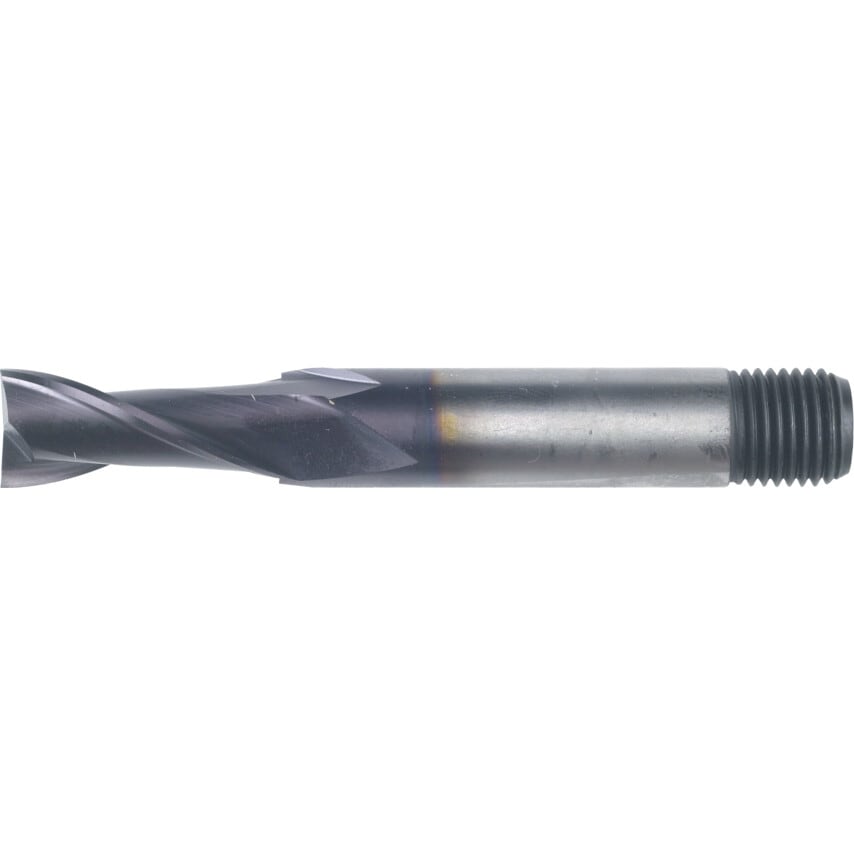

Series 29 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 10.0mm |
| Milling Cutter Type | Slot Drill |
| Length Type | Regular |
| Standards Met | DIN 844 | DIN 1835D |
| Cutter Style | Square End |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Overall Length | 72.0mm |
| Product Type | Slot Drills |
| Cutting Direction | Right Hand |
| Shank Type | Threaded |
| Material | Cobalt High Speed Steel |
| End Mill Type | Slot Drill |
| Finish/Coating | TiCN |
| Flute Length | 22.0mm |
| Shank Diameter Tolerance | H6 |
| Series | 29 |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| Shank Diameter | 10.0mm |
| Number of Flutes | 2 |
