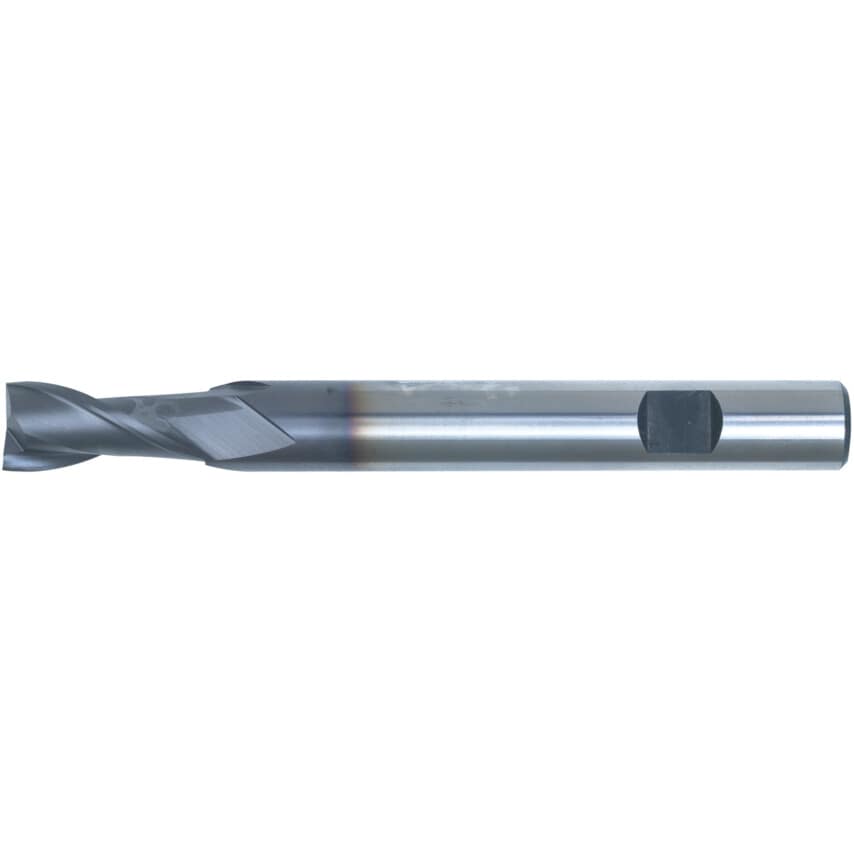

Series 03 - Long Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 844 | DIN 1835B |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Material Grade | M42 |
| Overall Length | 110.0mm |
| Series | 03 |
| Milling Cutter Type | Slot Drill |
| Shank Diameter | 12.0mm |
| System of Measurement | Metric |
| Flute Length | 26.0mm |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 12.0mm |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Finish/Coating | TiCN |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | e8 |
| Cutter Style | Square |
| Length Type | Long |
