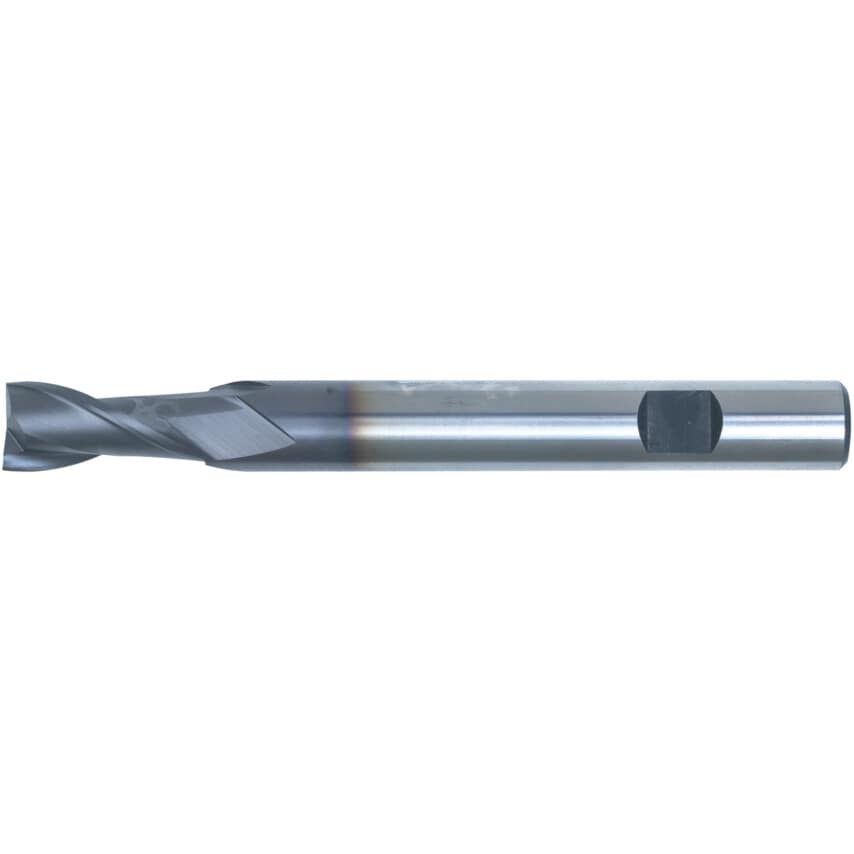

Series 03 - Long Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Long |
| Overall Length | 68.00mm |
| Cutter Diameter | 5.00mm |
| Material | Cobalt High Speed Steel |
| Flute Length | 13.00mm |
| Shank Diameter | 6.00mm |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| Cutter Style | Square |
| Number of Flutes | 2 |
| Series | 03 |
| Finish/Coating | TiCN |
| Cutter Diameter Tolerance | e8 |
| Standards Met | DIN 844 | DIN 1835B |
| Milling Cutter Type | Slot Drill |
| End Mill Type | Slot Drill |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
