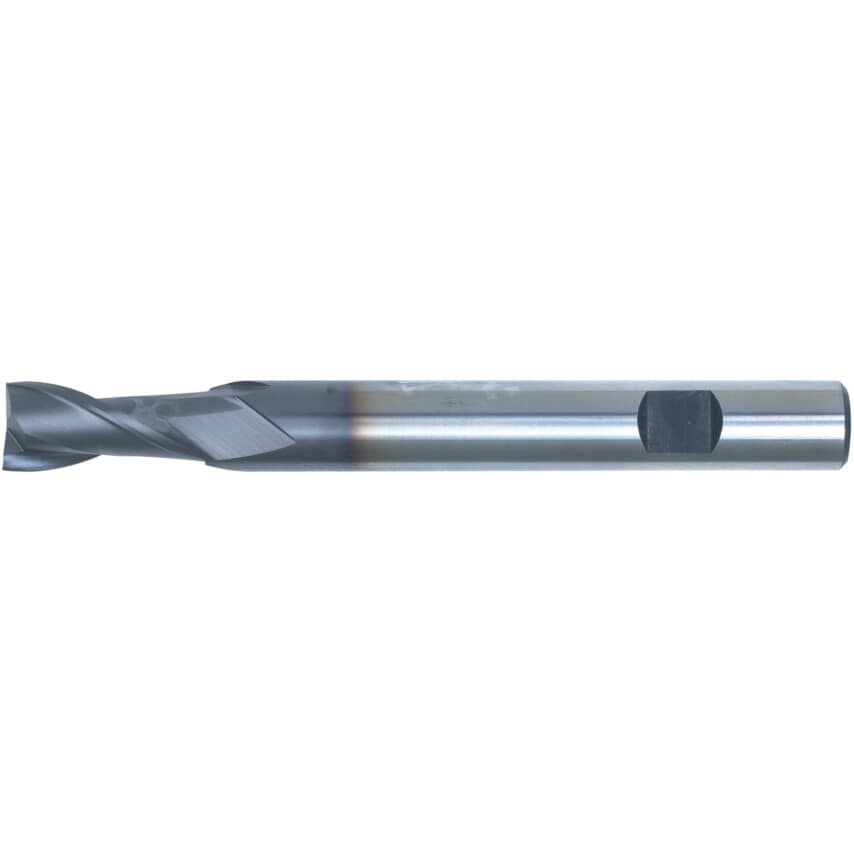

Series 03 - Long Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Number of Flutes | 2 |
| Standards Met | DIN 844 | DIN 1835B |
| Material Grade | M42 |
| Flute Type | Helical |
| Shank Diameter | 6.00mm |
| Series | 03 |
| Cutter Diameter Tolerance | e8 |
| Cutter Diameter | 6.00mm |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Milling Cutter Type | Slot Drill |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Length Type | Long |
| Finish/Coating | TiCN |
| Flute Length | 13.00mm |
| Coolant Delivery | External |
| Cutter Style | Square |
| Shank Type | Weldon Flat |
| Overall Length | 68.00mm |
| Shank Diameter Tolerance | H6 |
