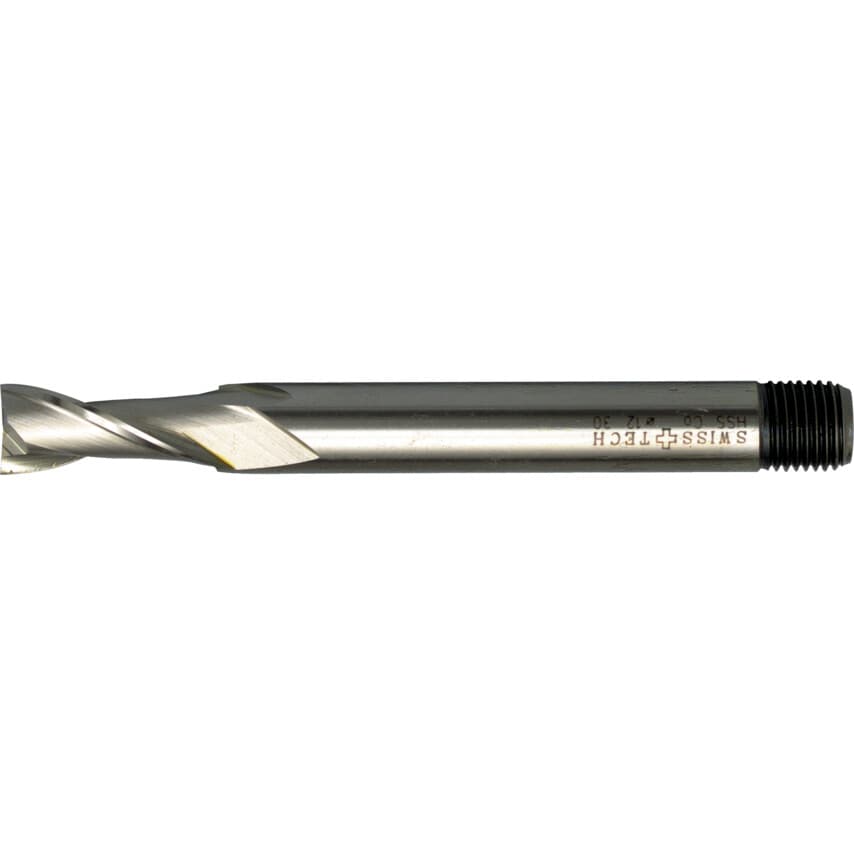

Series 30 - Long Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Finish/Coating | Uncoated |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Flute Length | 19.00mm |
| Shank Diameter | 10.00mm |
| Coolant Delivery | External |
| Series | 30 |
| Length Type | Long |
| System of Measurement | Metric |
| Cutter Diameter | 8.00mm |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835D |
| Cutting Direction | Right Hand |
| Shank Type | Threaded |
| Overall Length | 88.00mm |
| Material | Cobalt High Speed Steel |
| Plunge Type | Centre Cutting |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| Cutter Style | Square |
| Material Grade | M42 |
