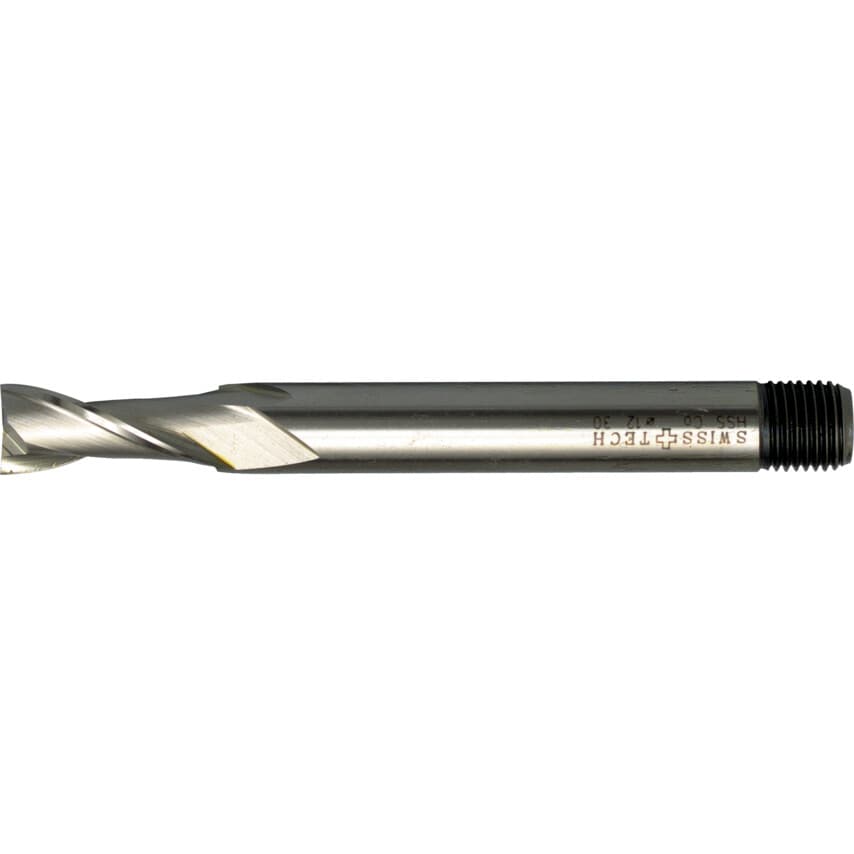

Series 30 - Long Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Long |
| Flute Length | 22.00mm |
| Cutter Diameter | 10.00mm |
| Overall Length | 95.00mm |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | e8 |
| Material Grade | M42 |
| Series | 30 |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Product Type | Slot Drills |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| Standards Met | DIN 844 | DIN 1835D |
| Milling Cutter Type | Slot Drill |
| Shank Diameter | 10.00mm |
| Shank Diameter Tolerance | H6 |
| Shank Type | Threaded |
| Cutter Style | Square |
