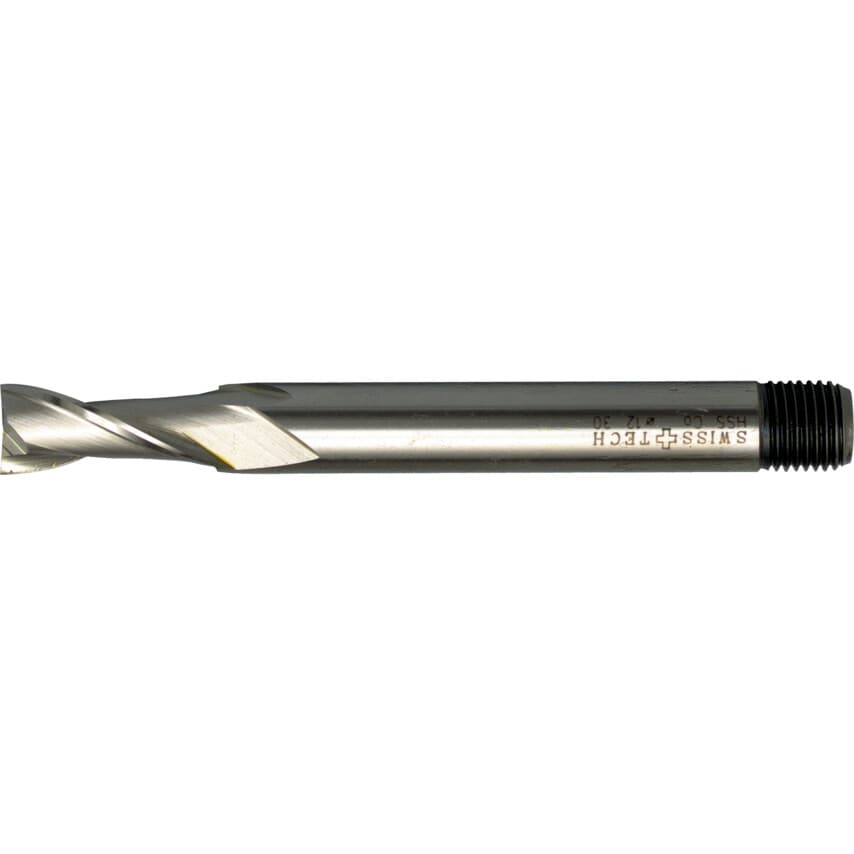

Series 30 - Long Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Plunge Type | Centre Cutting |
| Standards Met | DIN 844 | DIN 1835D |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Series | 30 |
| Flute Type | Helical |
| Overall Length | 110.0mm |
| Flute Length | 26.0mm |
| Product Type | Slot Drills |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 12.0mm |
| Finish/Coating | Uncoated |
| Length Type | Long |
| Material | Cobalt High Speed Steel |
| Material Grade | M42 |
| Shank Type | Threaded |
| End Mill Type | Slot Drill |
| Cutter Style | Square |
| Cutter Diameter | 12.0mm |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Number of Flutes | 2 |
