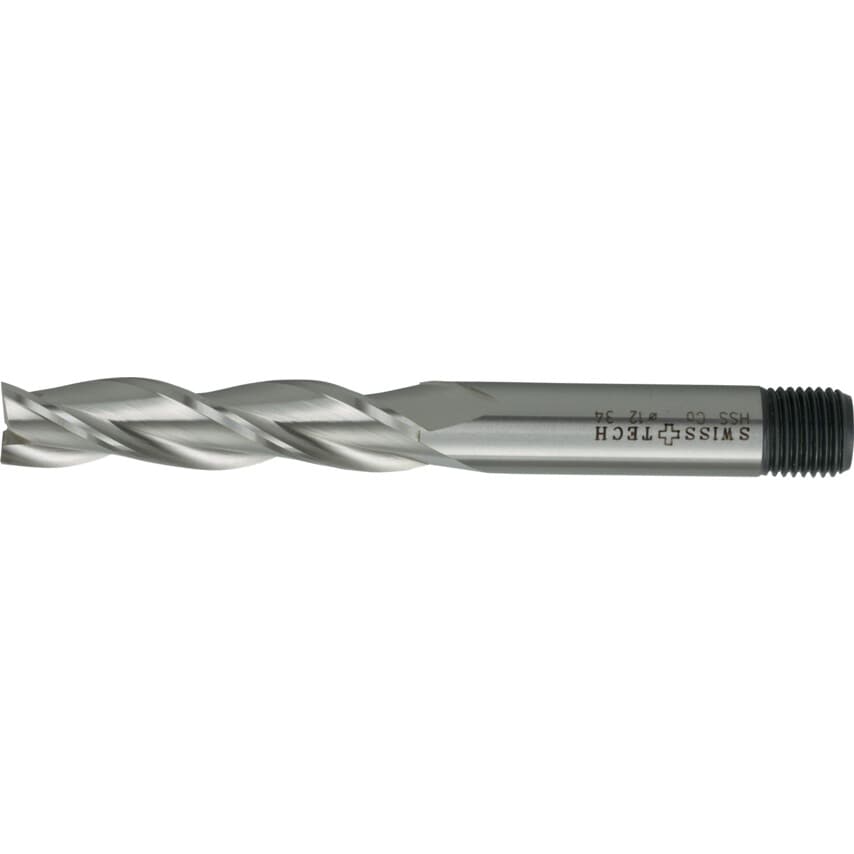

Series 34 - Long Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Long |
| Finish/Coating | Uncoated |
| Shank Type | Threaded |
| Cutter Style | Square |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Shank Diameter | 10.00mm |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter | 10.00mm |
| Standards Met | DIN 844 | DIN 1835D |
| Flute Type | Helical |
| Material Grade | M42 |
| Number of Flutes | 3 |
| Plunge Type | Centre Cutting |
| Overall Length | 95.00mm |
| Flute Length | 45.00mm |
| Series | 34 |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | e8 |
