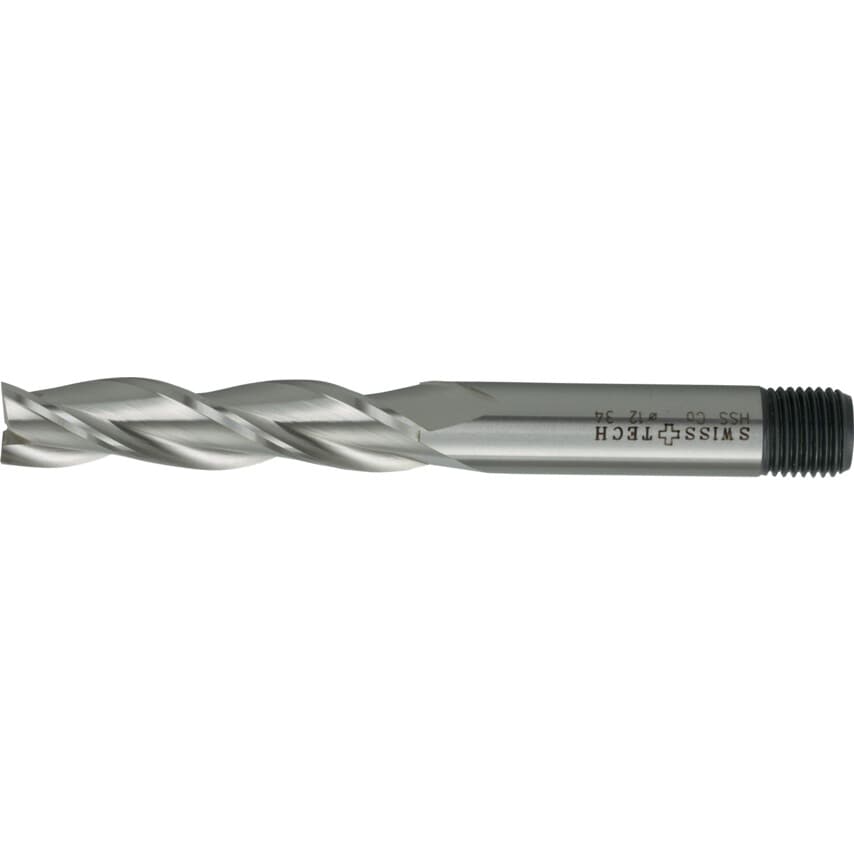

Series 34 - Long Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter Tolerance | e8 |
| Series | 34 |
| Cutting Direction | Right Hand |
| Cutter Style | Square |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Standards Met | DIN 844 | DIN 1835D |
| Flute Type | Helical |
| Length Type | Long |
| Material | Cobalt High Speed Steel |
| Material Grade | M42 |
| Plunge Type | Centre Cutting |
| Overall Length | 141.00mm |
| Finish/Coating | Uncoated |
| Flute Length | 75.00mm |
| Shank Diameter | 20.00mm |
| Shank Diameter Tolerance | H6 |
| Shank Type | Threaded |
| Number of Flutes | 3 |
| Cutter Diameter | 20.00mm |
| System of Measurement | Metric |
