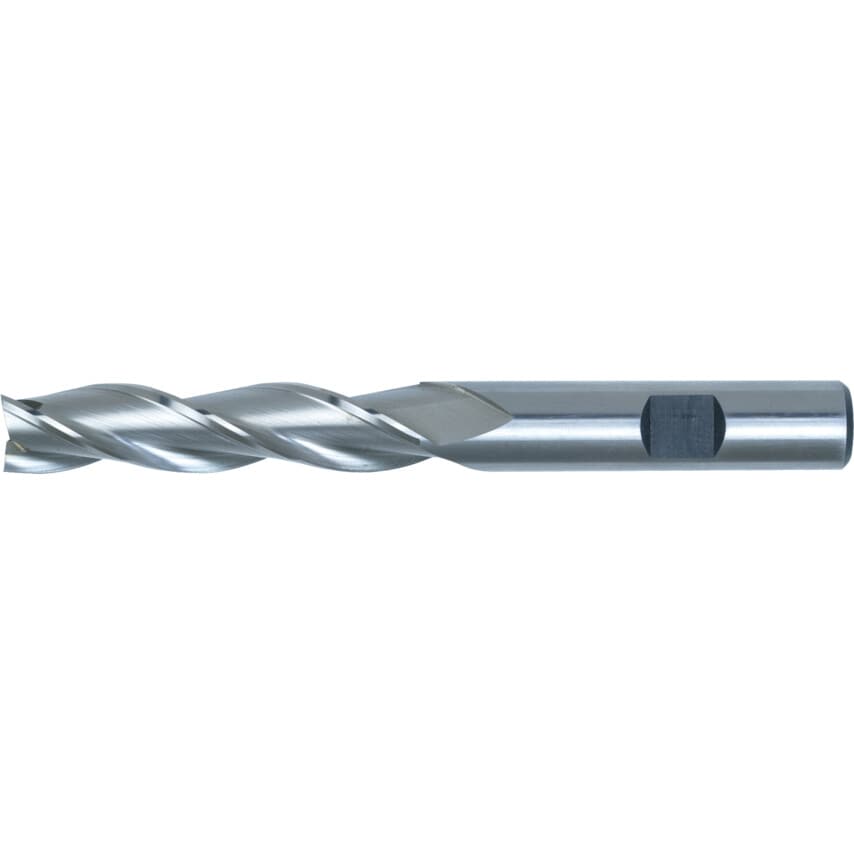

Series 07 - Long Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 16.00mm |
| Cutter Diameter Tolerance | e8 |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Diameter | 16.00mm |
| System of Measurement | Metric |
| Standards Met | DIN 844 | DIN 1835B |
| End Mill Type | Slot Drill |
| Overall Length | 123.00mm |
| Series | 07 |
| Flute Length | 63.00mm |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Material Grade | M42 |
| Coolant Delivery | External |
| Length Type | Long |
| Cutter Style | Square |
| Finish/Coating | Uncoated |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 3 |
| Material | Cobalt High Speed Steel |
