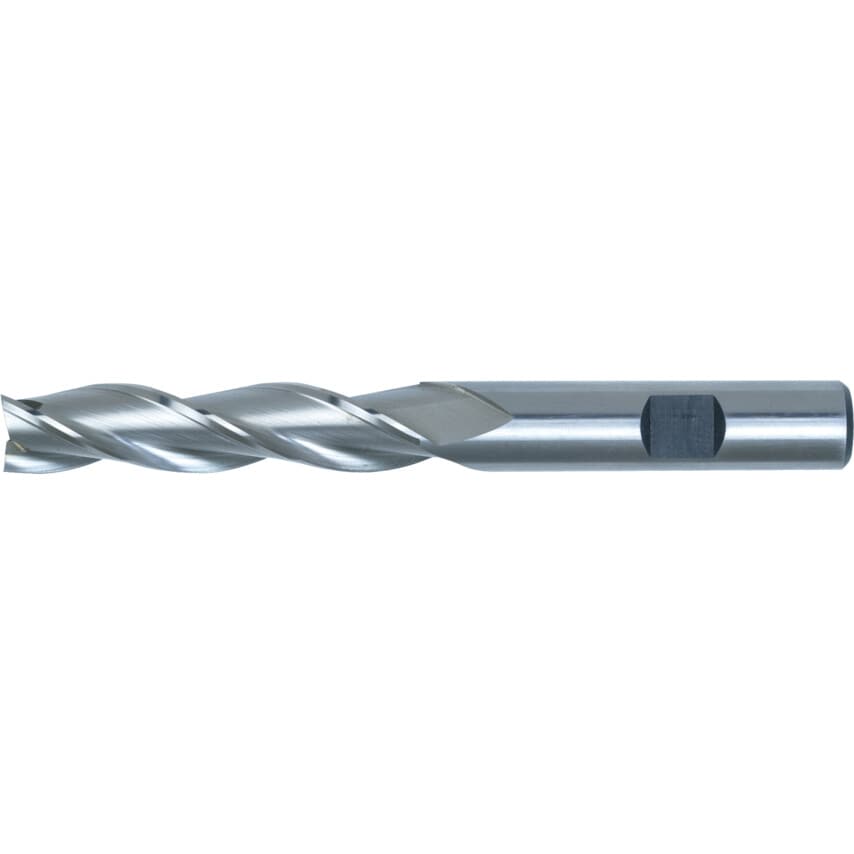

Series 07 - Long Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Series | 07 |
| Flute Length | 12.00mm |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Material Grade | M42 |
| End Mill Type | Slot Drill |
| Cutter Style | Square |
| System of Measurement | Metric |
| Overall Length | 56.00mm |
| Number of Flutes | 3 |
| Shank Diameter | 6.00mm |
| Shank Diameter Tolerance | H6 |
| Length Type | Long |
| Shank Type | Weldon Flat |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 3.00mm |
| Cutter Diameter Tolerance | e8 |
| Standards Met | DIN 844 | DIN 1835B |
| Finish/Coating | Uncoated |
