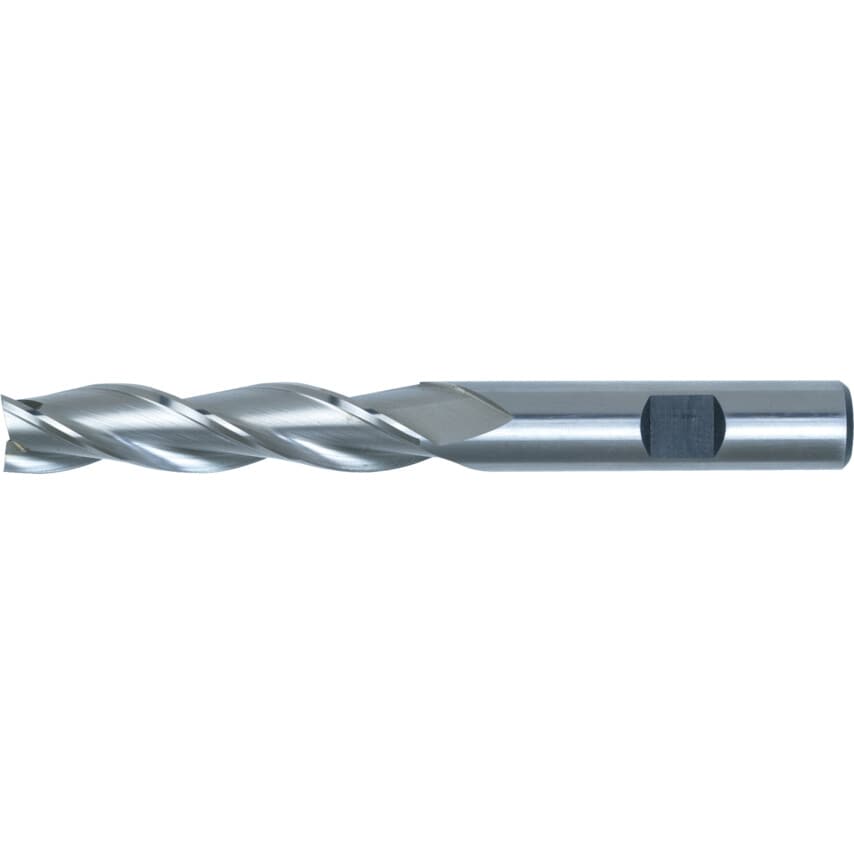

Series 07 - Long Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square |
| Overall Length | 95.00mm |
| Shank Type | Weldon Flat |
| Finish/Coating | Uncoated |
| Standards Met | DIN 844 | DIN 1835B |
| Length Type | Long |
| Material | Cobalt High Speed Steel |
| Series | 07 |
| Coolant Delivery | External |
| Cutter Diameter | 10.00mm |
| End Mill Type | Slot Drill |
| Material Grade | M42 |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| Shank Diameter | 10.00mm |
| Number of Flutes | 3 |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Flute Length | 45.00mm |
| Milling Cutter Type | Slot Drill |
