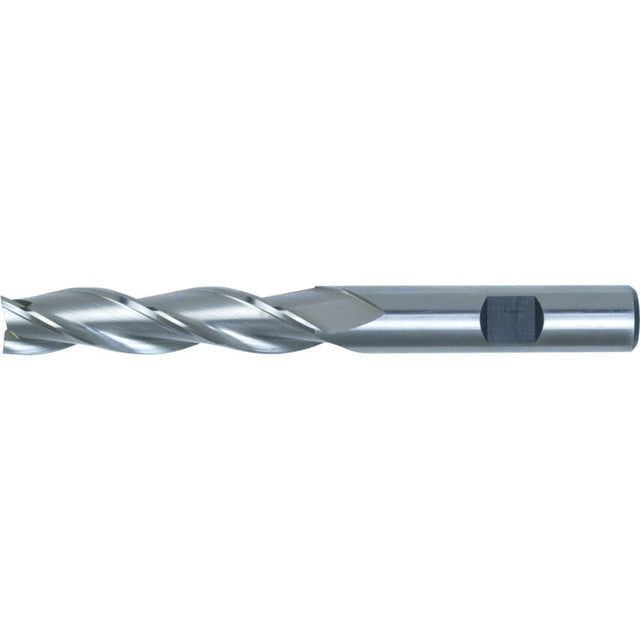

Series 07 - Long Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Material Grade | M42 |
| Milling Cutter Type | Slot Drill |
| Shank Type | Weldon Flat |
| Cutter Diameter Tolerance | e8 |
| Length Type | Long |
| System of Measurement | Metric |
| Flute Type | Helical |
| Series | 07 |
| Overall Length | 68.00mm |
| Cutter Diameter | 5.00mm |
| Shank Diameter | 6.00mm |
| Number of Flutes | 3 |
| Flute Length | 24.00mm |
| Cutter Style | Square |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 844 | DIN 1835B |
| Finish/Coating | Uncoated |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
