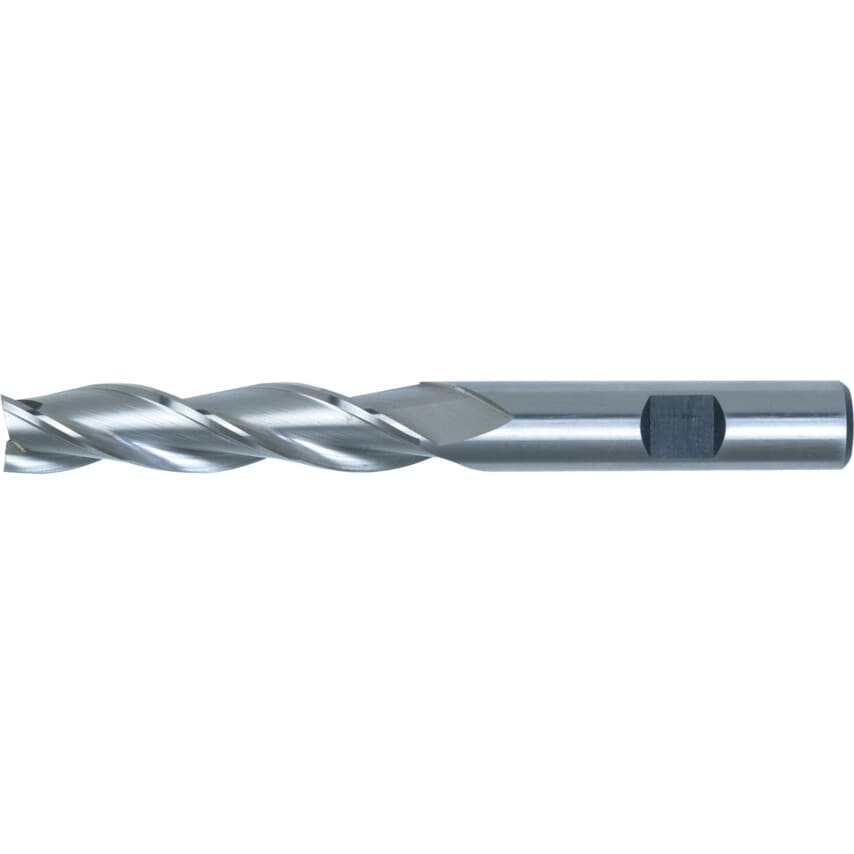

Series 07 - Long Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Weldon Flat |
| Flute Length | 75.00mm |
| Standards Met | DIN 844 | DIN 1835B |
| Overall Length | 141.00mm |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Series | 07 |
| Material Grade | M42 |
| Flute Type | Helical |
| System of Measurement | Metric |
| Cutter Diameter | 22.00mm |
| Shank Diameter | 20.00mm |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Length Type | Long |
| Milling Cutter Type | Slot Drill |
| Finish/Coating | Uncoated |
| Cutter Style | Square |
| Number of Flutes | 3 |
| End Mill Type | Slot Drill |
