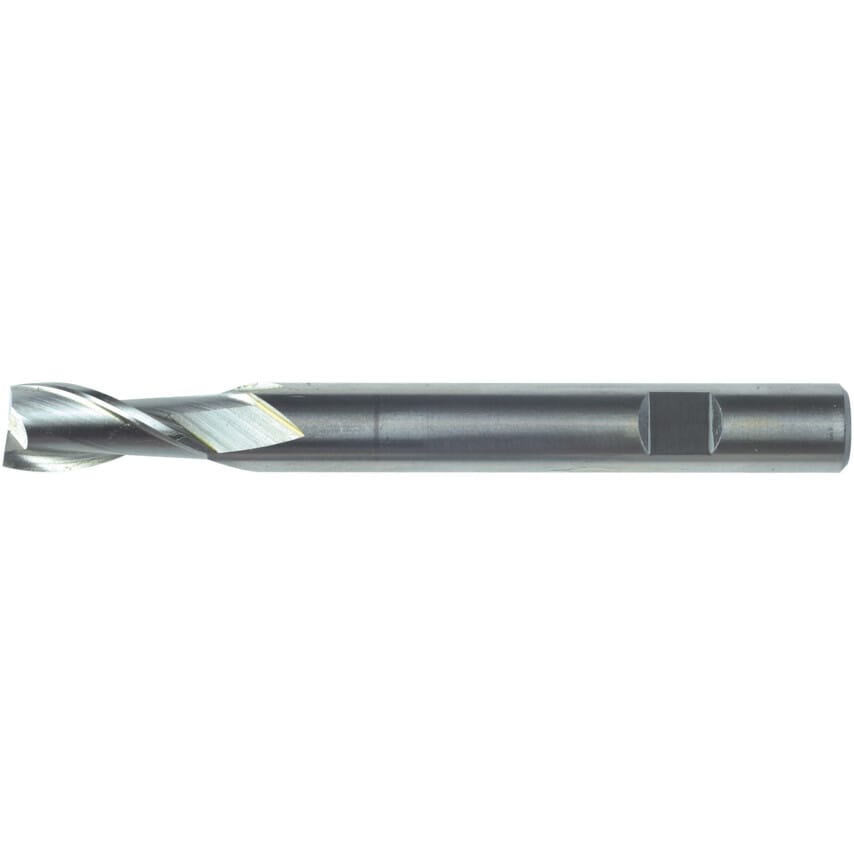

Series 03 - Long Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Milling Cutter Type | Slot Drill |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Length Type | Long |
| Material Grade | M42 |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| Overall Length | 88.00mm |
| Shank Diameter Tolerance | H6 |
| Series | 03 |
| Cutter Diameter | 8.00mm |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter | 10.00mm |
| Flute Length | 19.00mm |
| Standards Met | DIN 844 | DIN 1835B |
| End Mill Type | Slot Drill |
