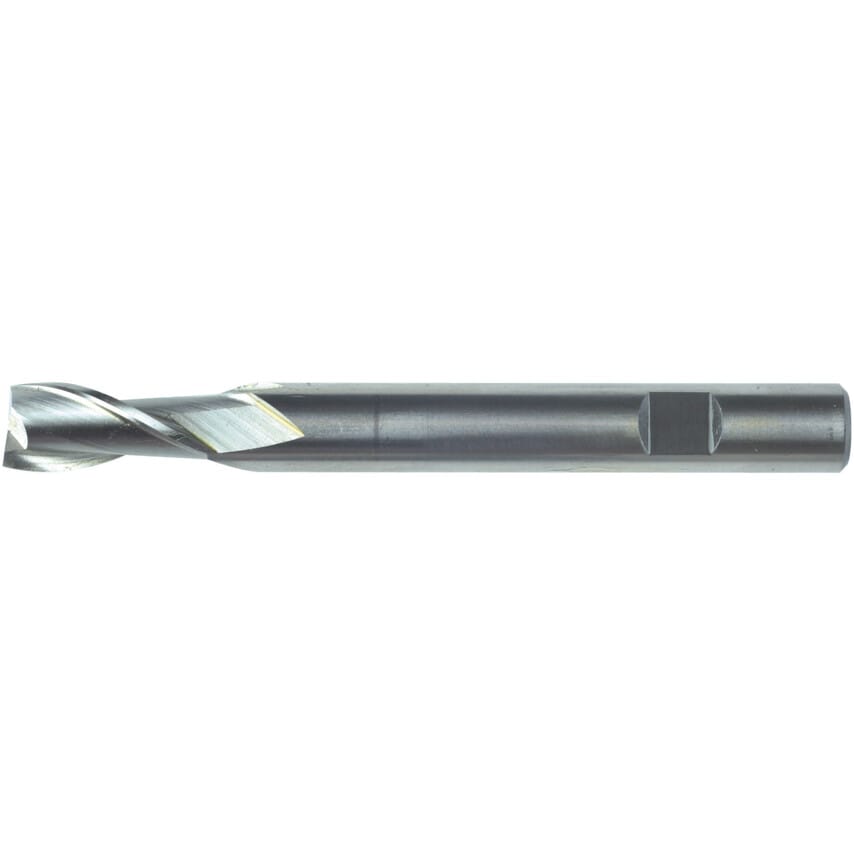

Series 03 - Long Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Number of Flutes | 2 |
| Length Type | Long |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Flute Length | 8.00mm |
| Cutter Style | Square |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Series | 03 |
| Standards Met | DIN 844 | DIN 1835B |
| Cutting Direction | Right Hand |
| Shank Diameter | 6.00mm |
| Material | Cobalt High Speed Steel |
| Plunge Type | Centre Cutting |
| Overall Length | 56.00mm |
| Cutter Diameter Tolerance | e8 |
| Shank Type | Weldon Flat |
| Finish/Coating | Uncoated |
| Flute Type | Helical |
| Material Grade | M42 |
| Cutter Diameter | 3.00mm |
