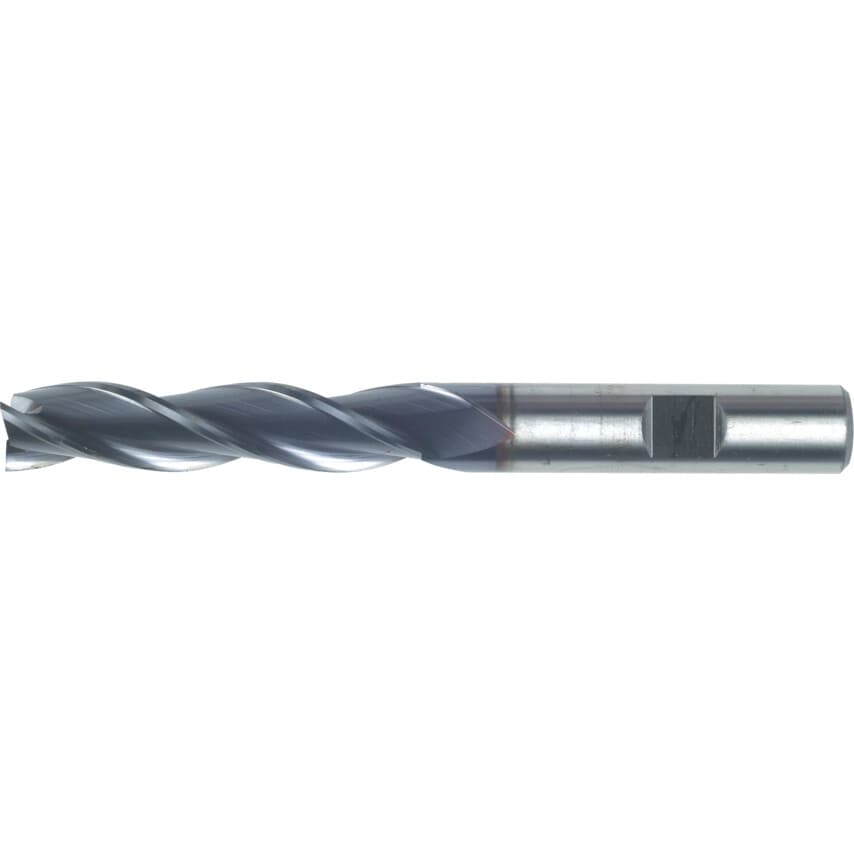

Series 07 - Long Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Length Type | Long |
| Cutter Style | Square |
| Shank Diameter | 10.00mm |
| Milling Cutter Type | Slot Drill |
| Material | Cobalt High Speed Steel |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Finish/Coating | TiCN |
| Coolant Delivery | External |
| Flute Length | 38.00mm |
| Cutter Diameter | 8.00mm |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Overall Length | 88.00mm |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
| Series | 07 |
| Standards Met | DIN 844 | DIN 1835B |
| Cutting Direction | Right Hand |
