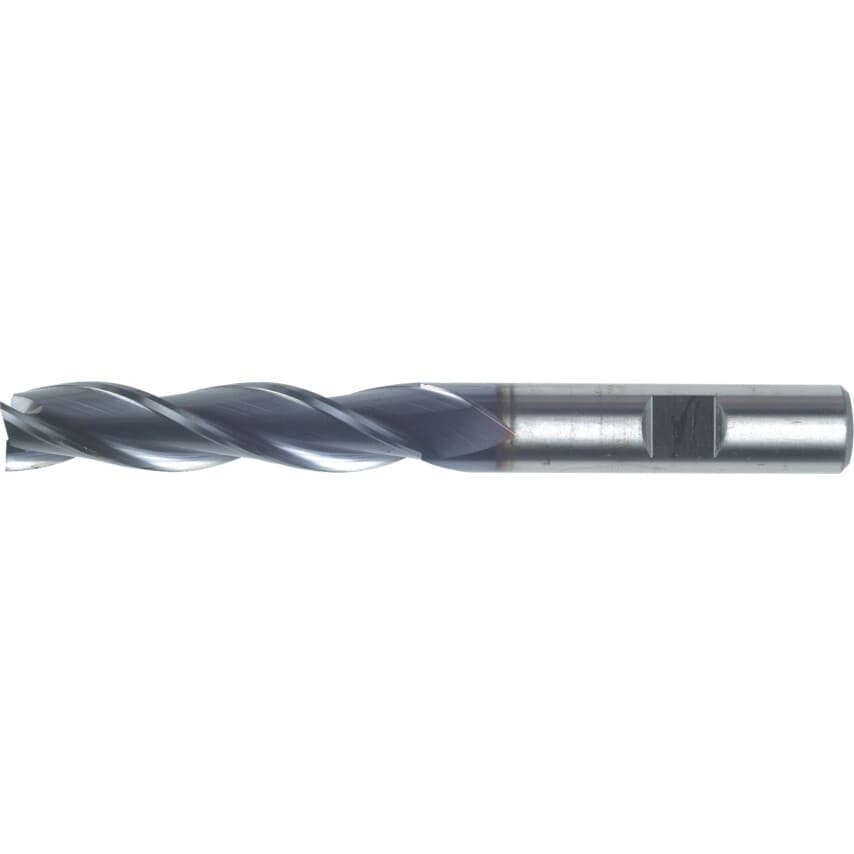

Series 07 - Long Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Overall Length | 68.00mm |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| Length Type | Long |
| Plunge Type | Centre Cutting |
| Shank Type | Weldon Flat |
| End Mill Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | TiCN |
| Cutter Style | Square |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | Slot Drill |
| Flute Length | 24.00mm |
| System of Measurement | Metric |
| Standards Met | DIN 844 | DIN 1835B |
| Number of Flutes | 3 |
| Cutter Diameter | 6.00mm |
| Coolant Delivery | External |
| Shank Diameter | 6.00mm |
| Flute Type | Helical |
| Material | Cobalt High Speed Steel |
| Series | 07 |
