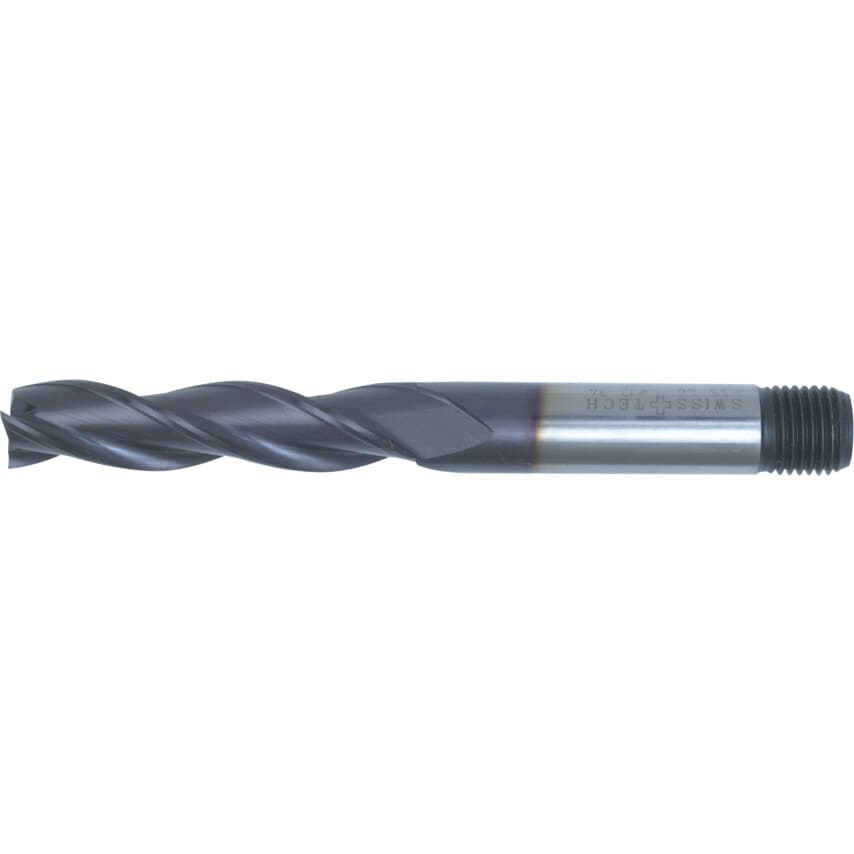

Series 34 - Long Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Long |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | e8 |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Flute Length | 38.00mm |
| Finish/Coating | TiAlN |
| Shank Type | Threaded |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Cutter Style | Square |
| Cutter Diameter | 8.00mm |
| Cutting Direction | Right Hand |
| Shank Diameter | 10.00mm |
| Material Grade | M42 |
| Series | 34 |
| Milling Cutter Type | Slot Drill |
| Overall Length | 88.00mm |
| Standards Met | DIN 844 | DIN 1835D |
