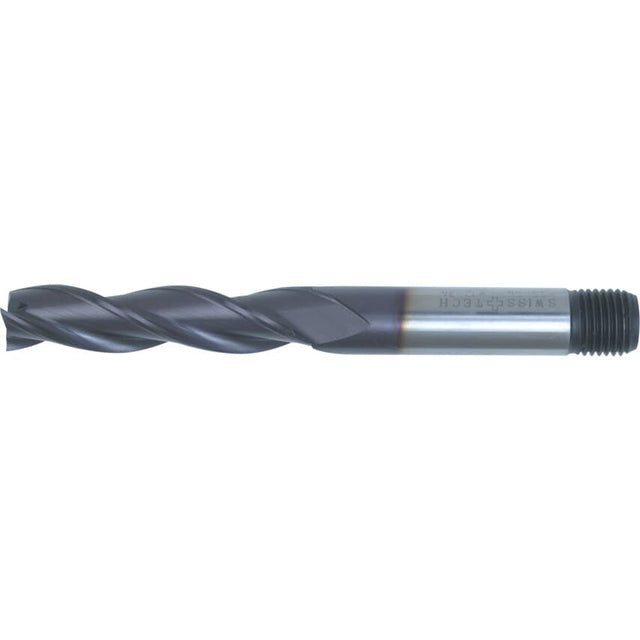

Series 34 - Long Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Threaded |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 16.00mm |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Flute Length | 63.00mm |
| Cutter Style | Square |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Cutter Diameter Tolerance | e8 |
| Length Type | Long |
| Standards Met | DIN 844 | DIN 1835D |
| System of Measurement | Metric |
| Shank Diameter | 16.00mm |
| Series | 34 |
| Finish/Coating | TiAlN |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Overall Length | 123.00mm |
| Number of Flutes | 3 |
