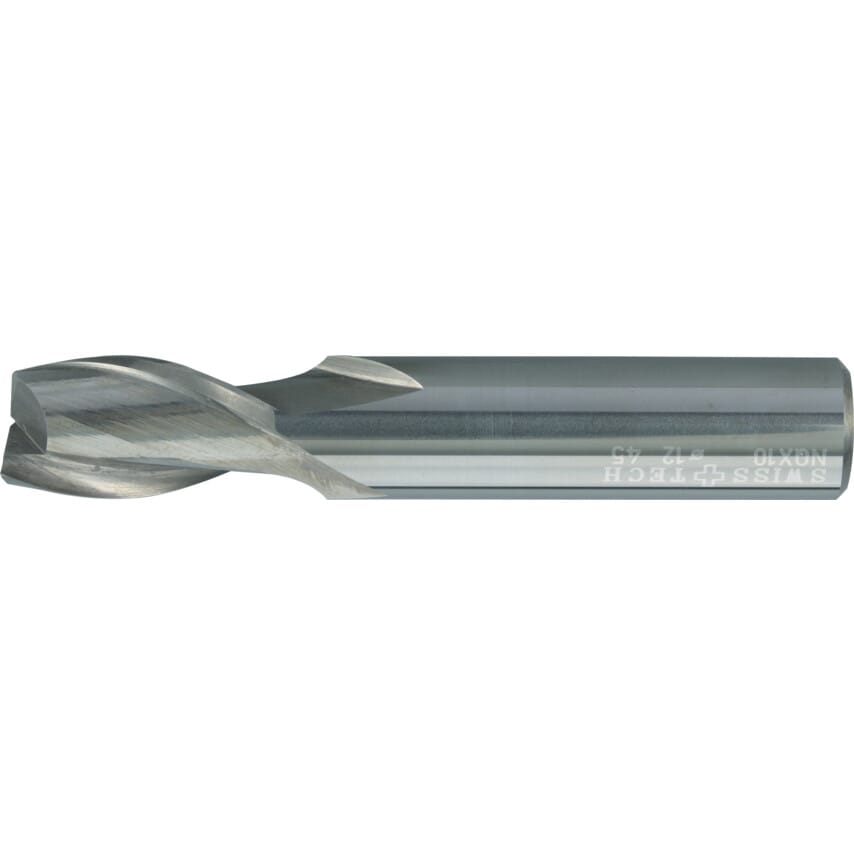

Series 45 - 2 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Carbide
Uncoated (for general production machining),
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Flute Length | 14mm |
| Plunge Type | Centre Cutting |
| Product Type | Slot Drills |
| Finish/Coating | Uncoated |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Cutter Diameter | 5mm |
| Material | Carbide |
| Shank Diameter | 5mm |
| Overall Length | 50.0mm |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Series | Series 45 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| Length Type | Short |
| Standards Met | DIN 6535 HA |
