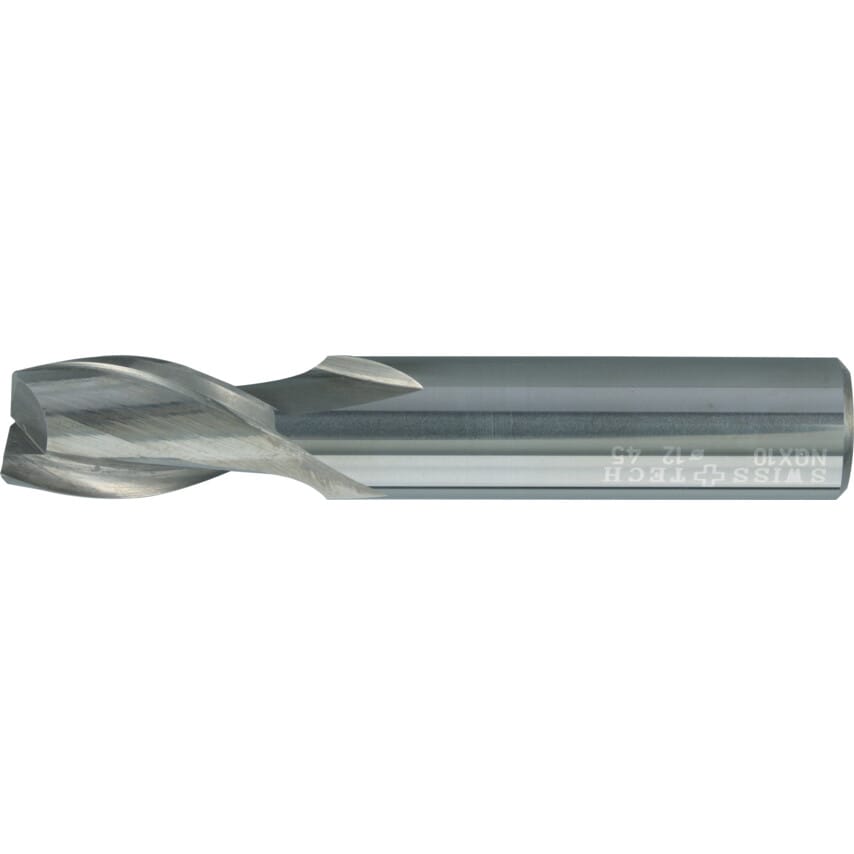

Series 45 - 2 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Carbide
Uncoated (for general production machining),
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Product Type | Slot Drills |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| Cutter Diameter | 10mm |
| Cutter Diameter Tolerance | H10 |
| Cutter Style | Square End |
| Standards Met | DIN 6535 HA |
| Length Type | Short |
| Milling Cutter Type | Slot Drill |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Overall Length | 70.0mm |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Shank Diameter | 10mm |
| Shank Type | Plain Round |
| Flute Length | 22mm |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | Uncoated |
| Series | Series 45 |
| Flute Type | Helical |
