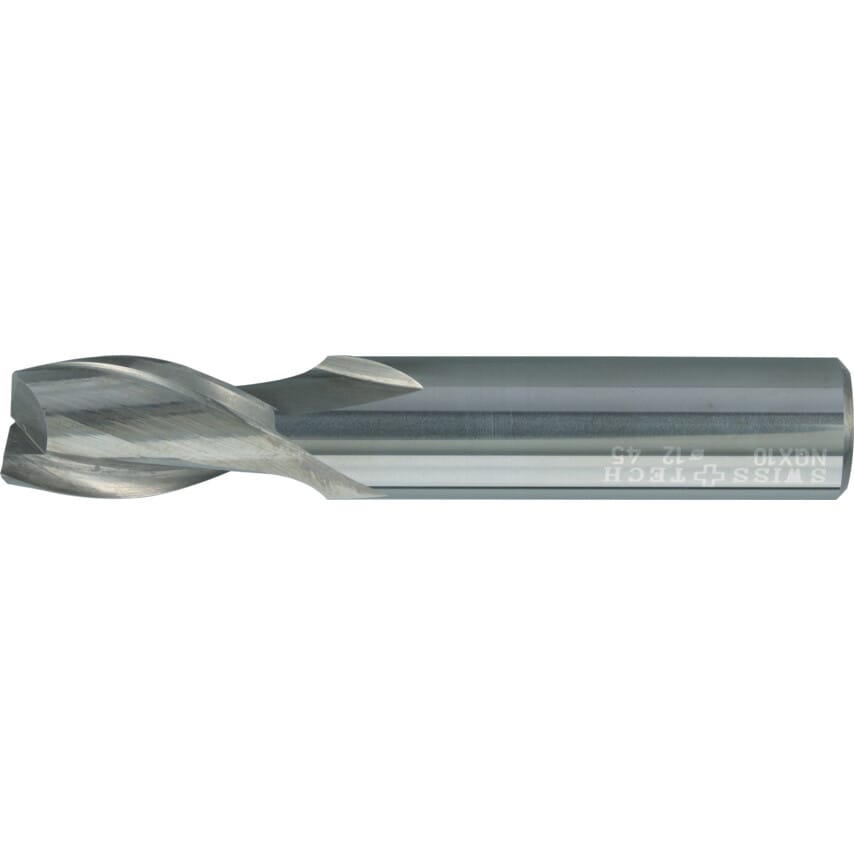

Series 45 - 2 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Carbide
Uncoated (for general production machining),
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Finish/Coating | Uncoated |
| Standards Met | DIN 6535 HA |
| Flute Length | 8mm |
| Coolant Delivery | External |
| Product Type | Slot Drills |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| Overall Length | 32.0mm |
| Cutter Diameter Tolerance | H10 |
| Number of Flutes | 2 |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| Cutter Style | Square End |
| End Mill Type | Slot Drill |
| Shank Diameter | 2mm |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Length Type | Short |
| Series | Series 45 |
| Cutter Diameter | 2mm |
| Cutting Direction | Right Hand |
