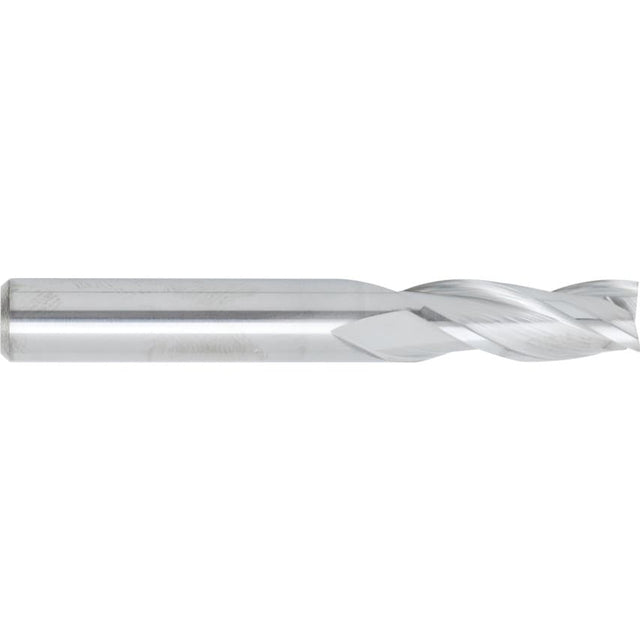

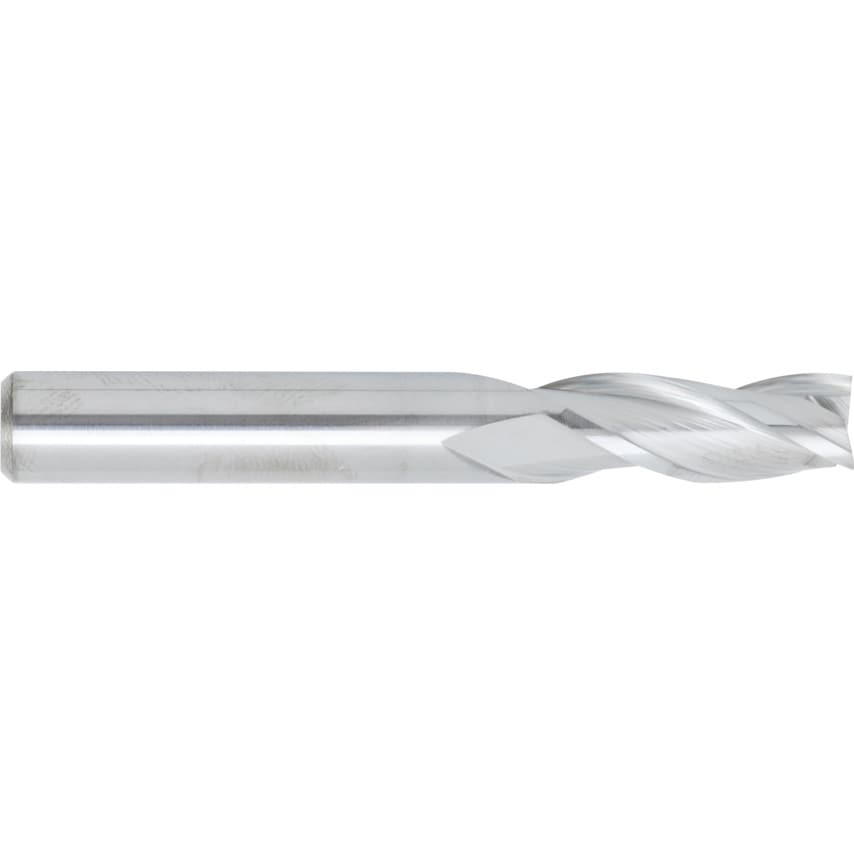

Series 48 carbide plain shank slot drills feature a 3 flute design for a powerful cut and chip removal. The uncoated carbide construction allows for greater strength and rigidity when centre cutting.
Features and Benefits
Carbide construction for greater cutting strength
3 flutes for efficient chip removal
Uncoated ideal for general production machining
Available in a range of metric sizes from 1mm-20mm
Standards
DIN 6535 HA
| Finish/Coating | Uncoated |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 8mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 3 |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| Length Type | Short |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Flute Length | 20mm |
| Shank Diameter | 8mm |
| Series | Series 48 |
| Shank Type | Plain Round |
| Standards Met | DIN 6535 HA |
| Overall Length | 60.0mm |
