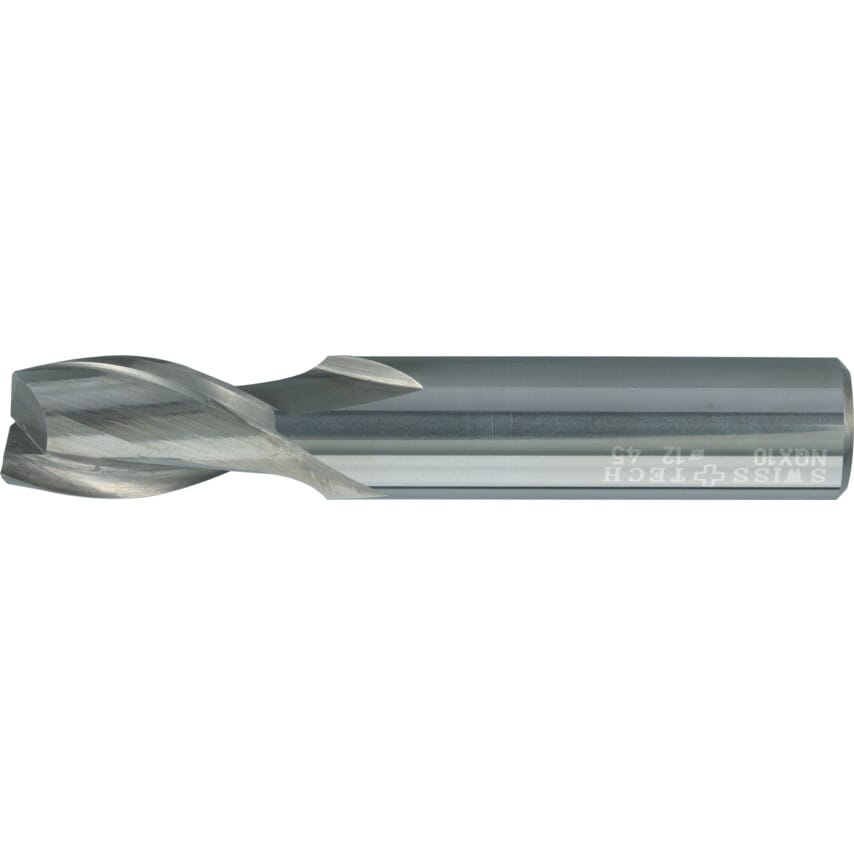

Series 45 - 2 Flute - Short Series, TiCN Coated
Dimensions to DIN 6535 HA. Centre cutting.
Uncoated (for general production machining),
Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Plunge Type | Centre Cutting |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Material | Carbide |
| Number of Flutes | 2 |
| Standards Met | DIN 6535 HA |
| Series | Series 45 |
| Overall Length | 60.0mm |
| Finish/Coating | TiCN |
| Flute Length | 20.0mm |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter | 8.0mm |
| Length Type | Short |
| Shank Diameter | 8.0mm |
| End Mill Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| Flute Type | Helical |
| Shank Type | Plain Round |
| Cutter Diameter Tolerance | H10 |
| Cutting Direction | Right Hand |
