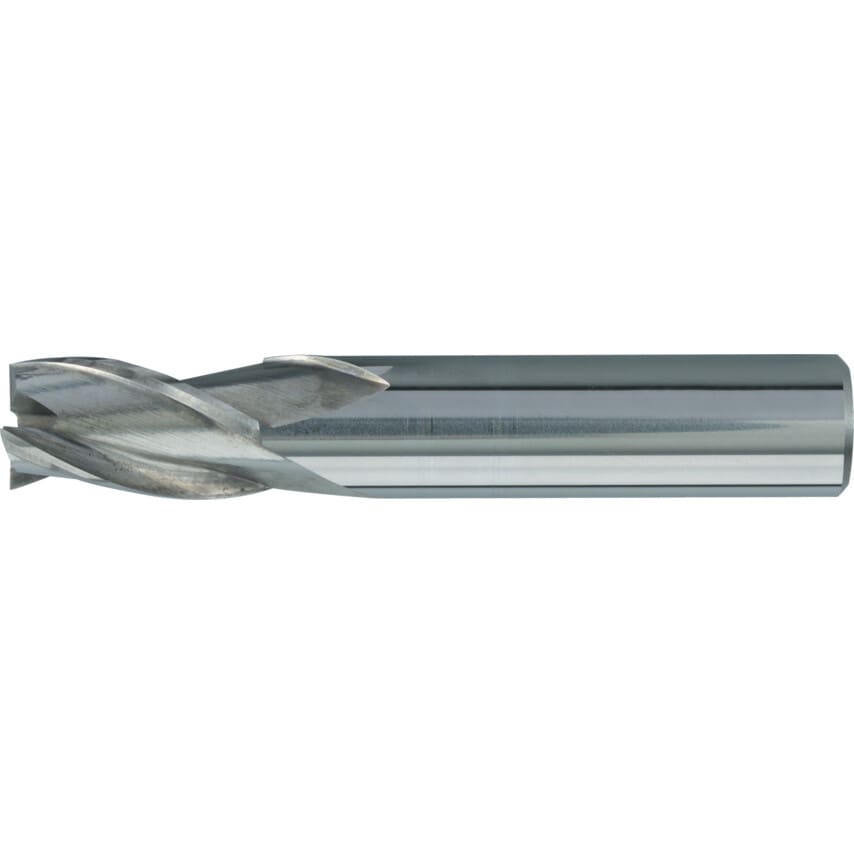

Series 48 - 3 Flute - Short Series, TiCN Coated
Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Series | Series 48 |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| End Mill Type | Slot Drill |
| Flute Length | 12mm |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| Shank Type | Plain Round |
| Number of Flutes | 3 |
| Length Type | Short |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Overall Length | 32.0mm |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Standards Met | DIN 6535 HA |
| Coolant Delivery | External |
| Finish/Coating | TiCN |
| Flute Type | Helical |
| Material | Carbide |
| Cutter Diameter | 3mm |
| Shank Diameter | 3mm |
