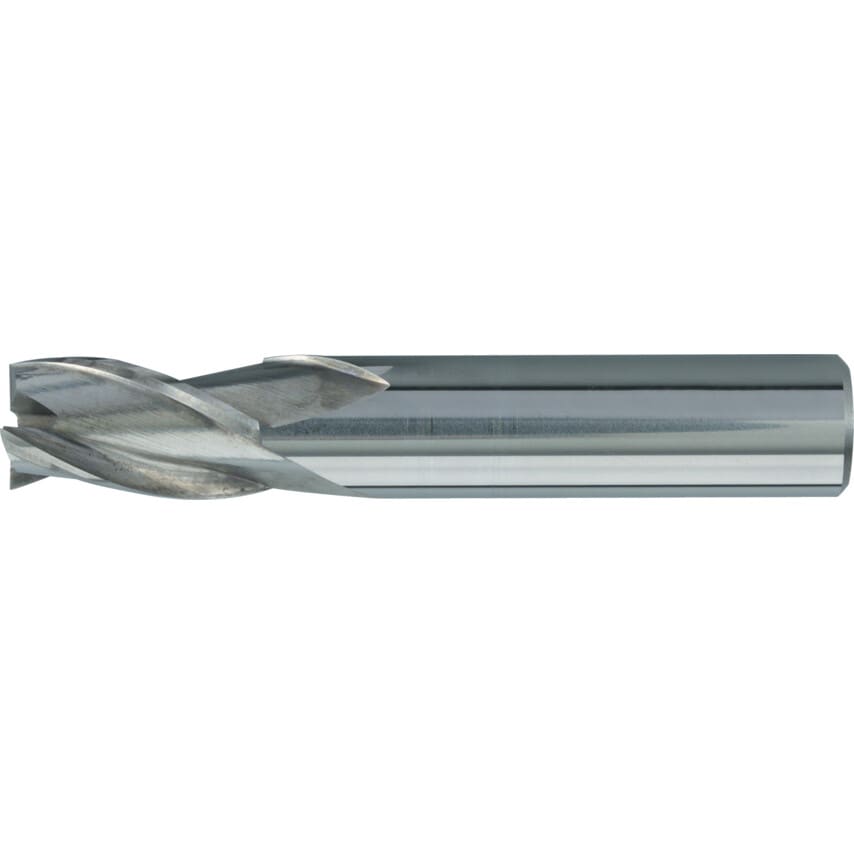

Series 48 - 3 Flute - Short Series, TiCN Coated
Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Short |
| Milling Cutter Type | Slot Drill |
| Material | Carbide |
| Shank Type | Plain Round |
| Cutter Style | Square End |
| Cutter Diameter | 6mm |
| Cutter Diameter Tolerance | H10 |
| System of Measurement | Metric |
| Flute Type | Helical |
| Flute Length | 16mm |
| Product Type | Slot Drills |
| Finish/Coating | TiCN |
| Overall Length | 50.0mm |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| Series | Series 48 |
| Plunge Type | Centre Cutting |
| Shank Diameter | 6mm |
| Cutting Direction | Right Hand |
| Standards Met | DIN 6535 HA |
| Number of Flutes | 3 |
