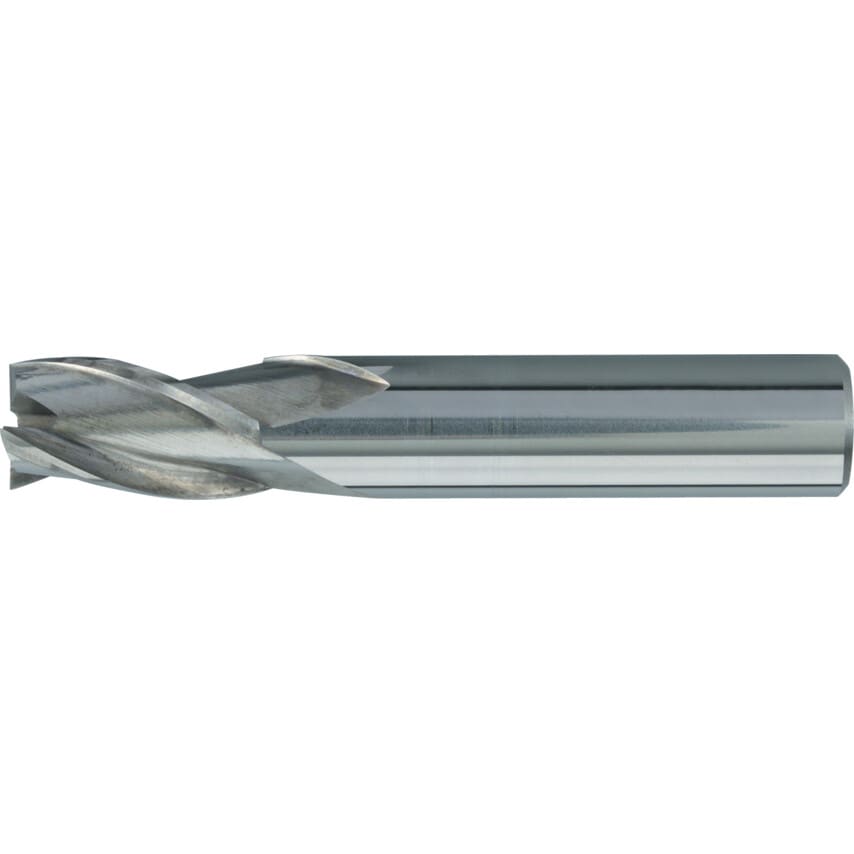

Series 48 - 3 Flute - Short Series, TiCN Coated
Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 8mm |
| Standards Met | DIN 6535 HA |
| Material | Carbide |
| Number of Flutes | 3 |
| Length Type | Short |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Shank Diameter | 8mm |
| Milling Cutter Type | Slot Drill |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Flute Type | Helical |
| Finish/Coating | TiCN |
| Overall Length | 60.0mm |
| Shank Type | Plain Round |
| Shank Diameter Tolerance | H6 |
| Series | Series 48 |
| Flute Length | 20mm |
| Cutter Diameter Tolerance | H10 |
| System of Measurement | Metric |
