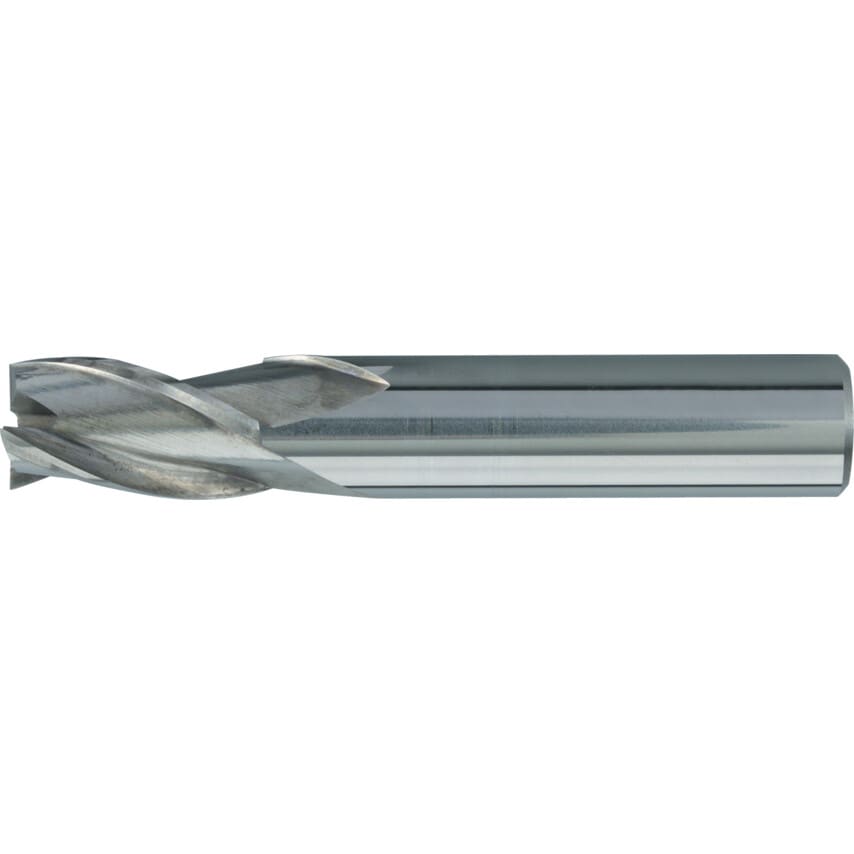

Series 48 - 3 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Style | Square End |
| Series | Series 48 |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Number of Flutes | 3 |
| Flute Length | 12mm |
| Standards Met | DIN 6535 HA |
| Shank Diameter | 4mm |
| Product Type | Slot Drills |
| Cutter Diameter Tolerance | H10 |
| Material | Carbide |
| Cutter Diameter | 4mm |
| Overall Length | 40.0mm |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| Length Type | Short |
| End Mill Type | Slot Drill |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Finish/Coating | TiAlN |
