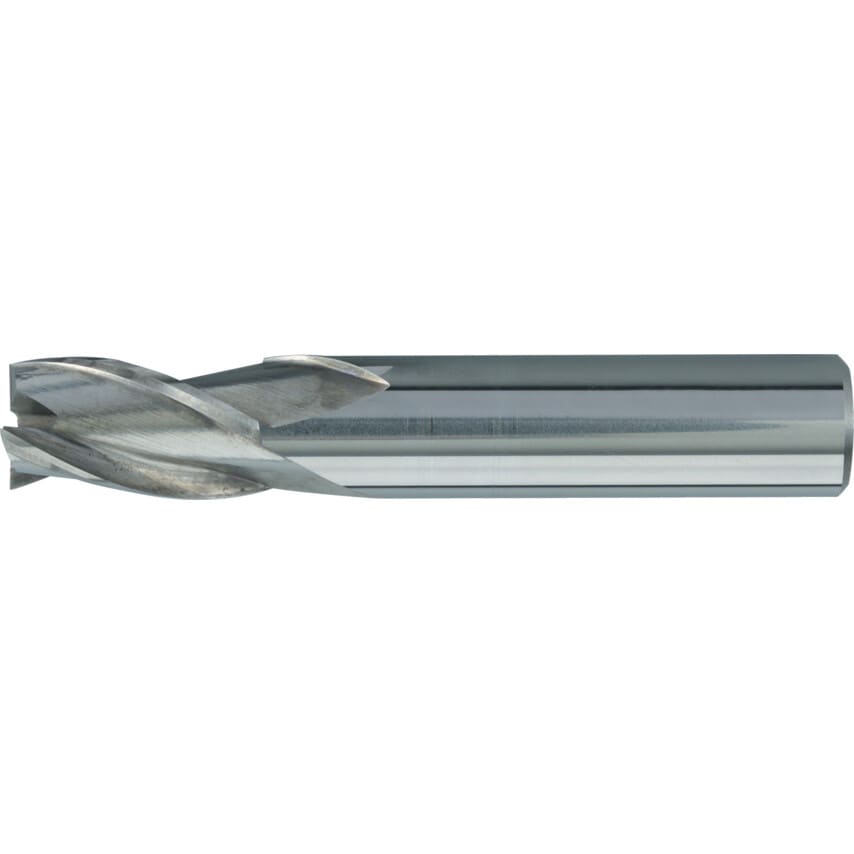

Series 48 - 3 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material | Carbide |
| Shank Type | Plain Round |
| Series | Series 48 |
| Standards Met | DIN 6535 HA |
| Length Type | Short |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Cutter Diameter | 5mm |
| Shank Diameter Tolerance | H6 |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | H10 |
| Product Type | Slot Drills |
| Overall Length | 50.0mm |
| Flute Length | 14mm |
| Finish/Coating | TiAlN |
| Cutter Style | Square End |
| Number of Flutes | 3 |
| Cutting Direction | Right Hand |
| Shank Diameter | 6mm |
| Flute Type | Helical |
