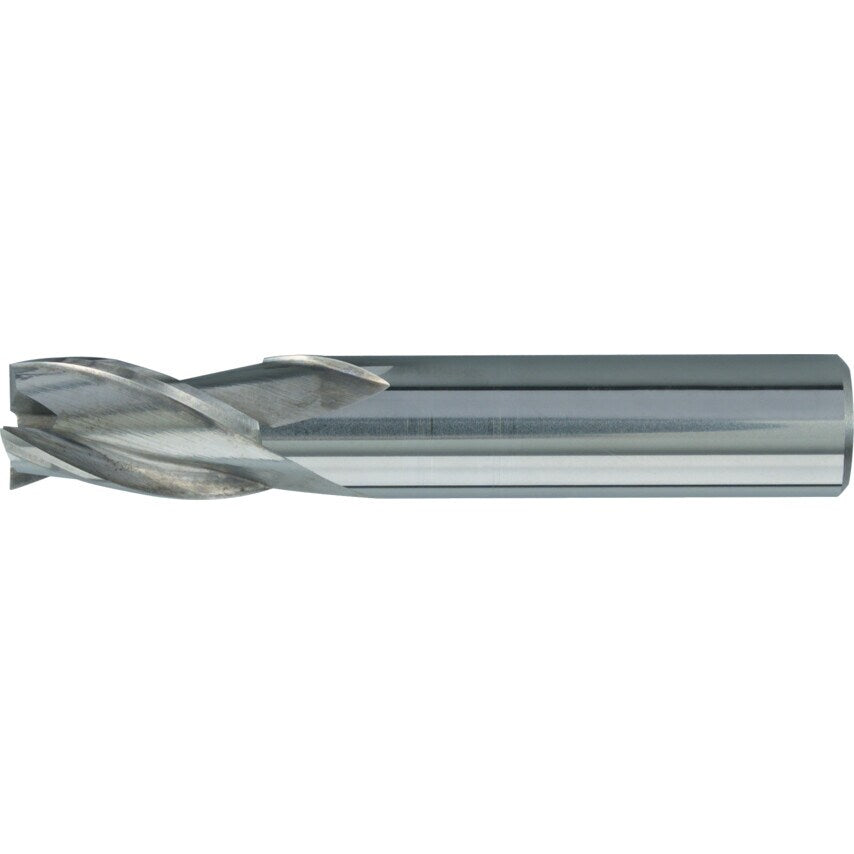

Series 48 - 3 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Product Type | Slot Drills |
| Cutter Style | Square End |
| Length Type | Short |
| Cutter Diameter Tolerance | H10 |
| Standards Met | DIN 6535 HA |
| Flute Length | 8mm |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| Material | Carbide |
| Finish/Coating | TiAlN |
| Number of Flutes | 3 |
| Shank Diameter | 2mm |
| Cutter Diameter | 2mm |
| Shank Type | Plain Round |
| End Mill Type | Slot Drill |
| Overall Length | 32.0mm |
| Series | Series 48 |
| Shank Diameter Tolerance | H6 |
