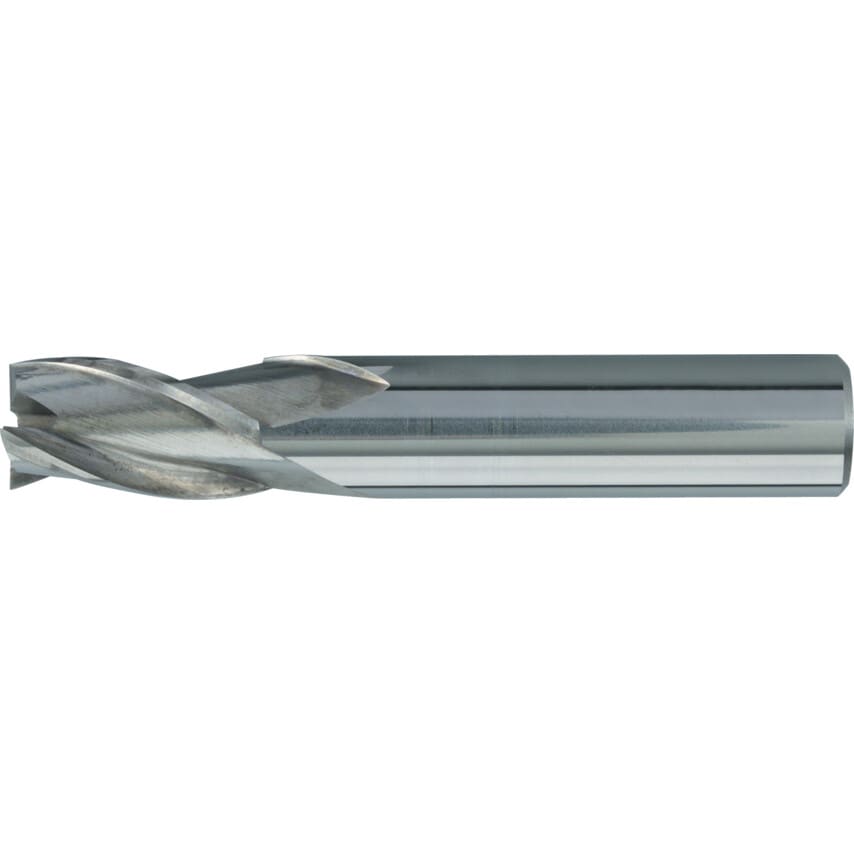

Series 48 - 3 Flute - Short Series
Dimensions to DIN 6535 HA. Centre cutting.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Plunge Type | Centre Cutting |
| Finish/Coating | TiAlN |
| Shank Type | Plain Round |
| Number of Flutes | 3 |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | H10 |
| Product Type | Slot Drills |
| Overall Length | 60.0mm |
| Flute Type | Helical |
| Coolant Delivery | External |
| Length Type | Short |
| Milling Cutter Type | Slot Drill |
| Series | Series 48 |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 8mm |
| Shank Diameter | 8mm |
| Flute Length | 20mm |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Material | Carbide |
| Standards Met | DIN 6535 HA |
