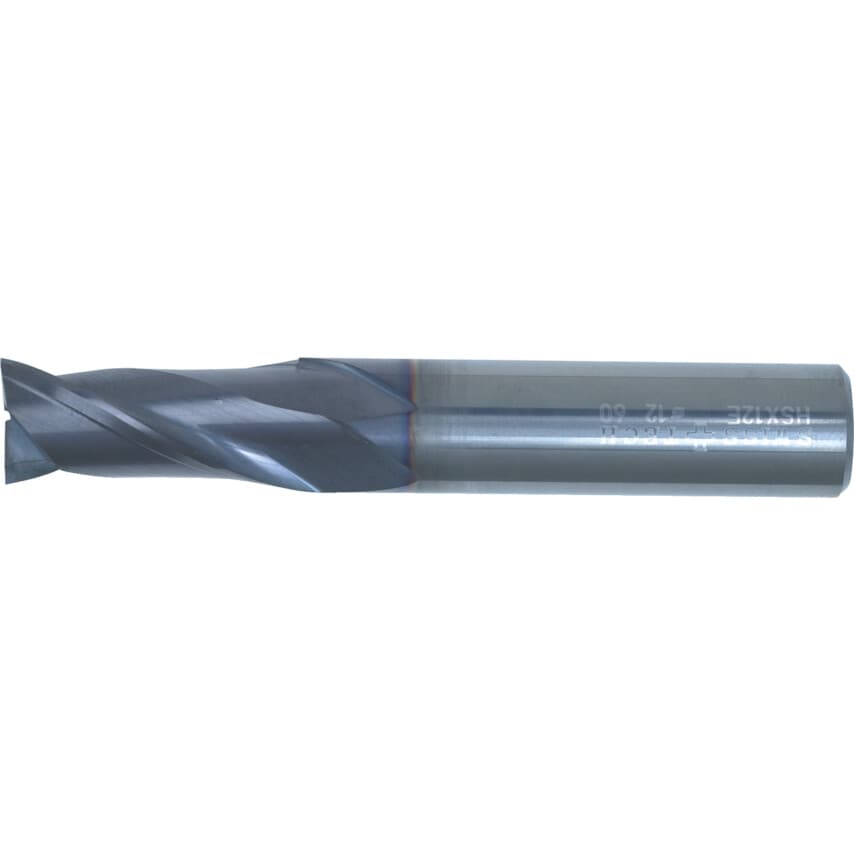

Series 60 Short Series Dimensions to DIN 844
Centre cutting.
To Manufacturers Standards.
Cutting diameter to h10. Shank diameter to h6.
SDQ-2PS Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Milling Cutter Type | Slot Drill |
| Standards Met | Manufacturers Standards |
| Shank Diameter | 8mm |
| Shank Type | Plain Round |
| Finish/Coating | Q-Coat |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| Overall Length | 60.0mm |
| Series | Series 60 |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Material | Carbide |
| Coolant Delivery | External |
| Product Type | Slot Drills |
| Flute Length | 16mm |
| Length Type | Short |
| System of Measurement | Metric |
| Cutter Diameter | 7mm |
