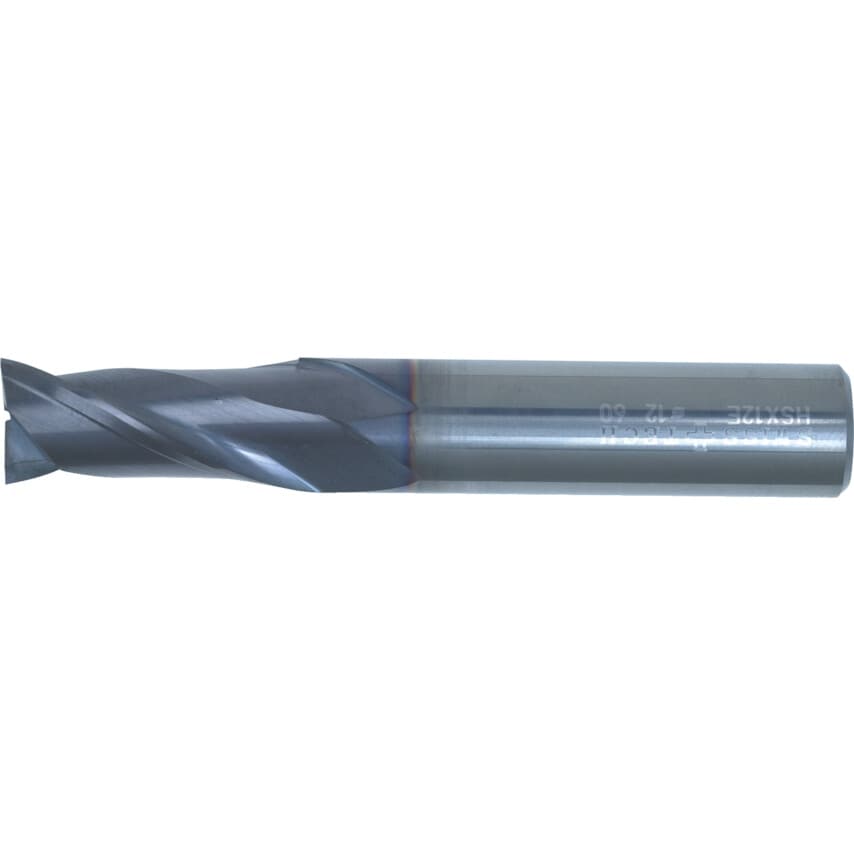

Series 60 Short Series Dimensions to DIN 844
Centre cutting.
To Manufacturers Standards.
Cutting diameter to h10. Shank diameter to h6.
SDQ-2PS Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Product Type | Slot Drills |
| Material | Carbide |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Standards Met | Manufacturers Standards |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter | 8mm |
| Plunge Type | Centre Cutting |
| End Mill Type | Slot Drill |
| Series | Series 60 |
| Cutter Diameter | 8mm |
| Flute Type | Helical |
| Overall Length | 60.0mm |
| Shank Type | Plain Round |
| Number of Flutes | 2 |
| Length Type | Short |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | Q-Coat |
| Cutting Direction | Right Hand |
| Flute Length | 19mm |
