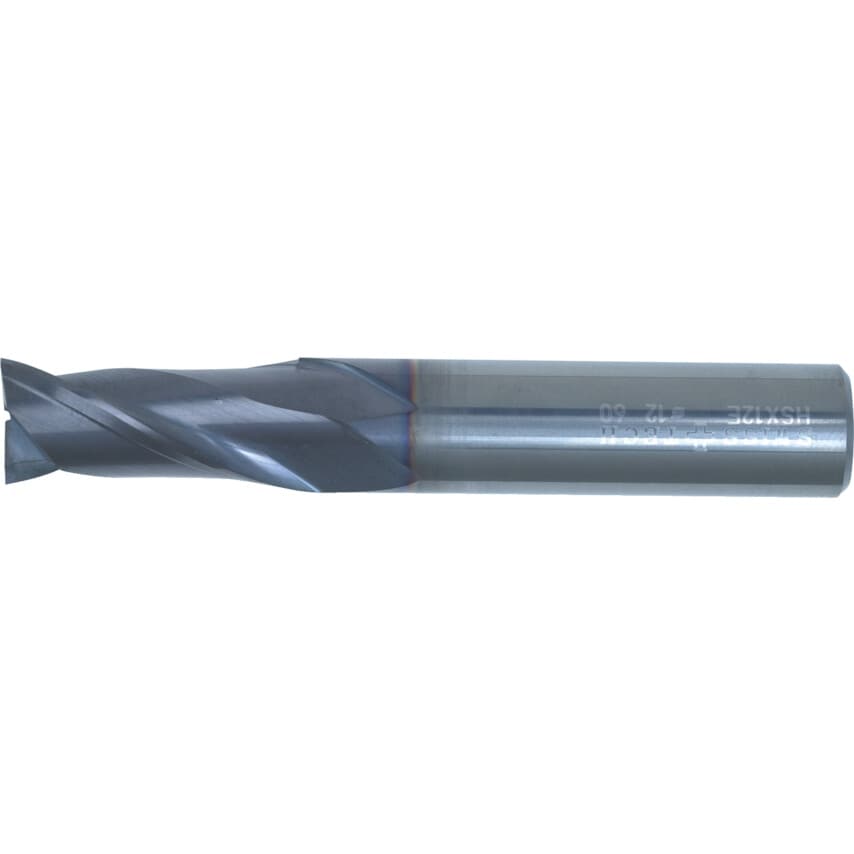

Series 60 Short Series Dimensions to DIN 844
Centre cutting.
To Manufacturers Standards.
Cutting diameter to h10. Shank diameter to h6.
SDQ-2PS Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Series | Series 60 |
| Finish/Coating | Q-Coat |
| Shank Type | Plain Round |
| Milling Cutter Type | Slot Drill |
| Shank Diameter | 12mm |
| Flute Type | Helical |
| Cutter Diameter Tolerance | H10 |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| Overall Length | 75.0mm |
| Shank Diameter Tolerance | H6 |
| Standards Met | Manufacturers Standards |
| Cutter Diameter | 12mm |
| Number of Flutes | 2 |
| Cutter Style | Square End |
| Flute Length | 26mm |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Length Type | Short |
