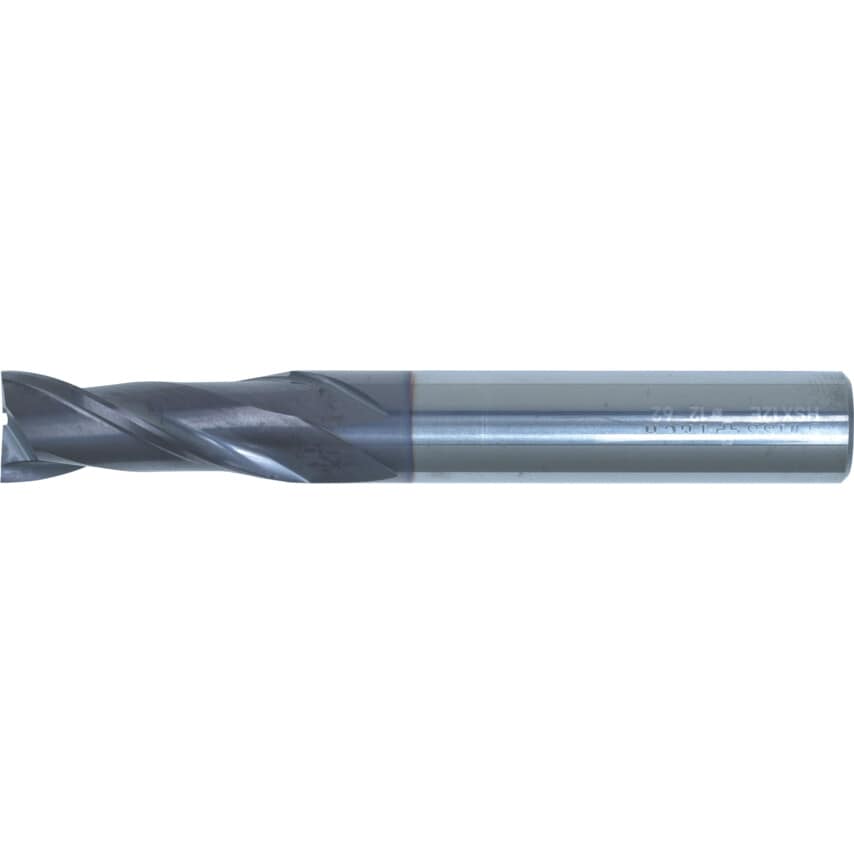

Series 62 - Long Series
Dimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. SDQ-2PS Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Cutter Diameter | 8.0mm |
| Length Type | Long |
| Flute Type | Helical |
| Flute Length | 25.0mm |
| Cutter Style | Square |
| Cutter Diameter Tolerance | H10 |
| Shank Type | Plain Round |
| Product Type | Slot Drills |
| Finish/Coating | AlTiN |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Helix Angle | 30\u00b0 |
| Shank Diameter Tolerance | H6 |
| Overall Length | 70.0mm |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| Coolant Delivery | External |
| Standards Met | DIN 844 |
| Cutting Direction | Right Hand |
| Shank Diameter | 8.0mm |
| System of Measurement | Metric |
| Number of Flutes | 2 |
