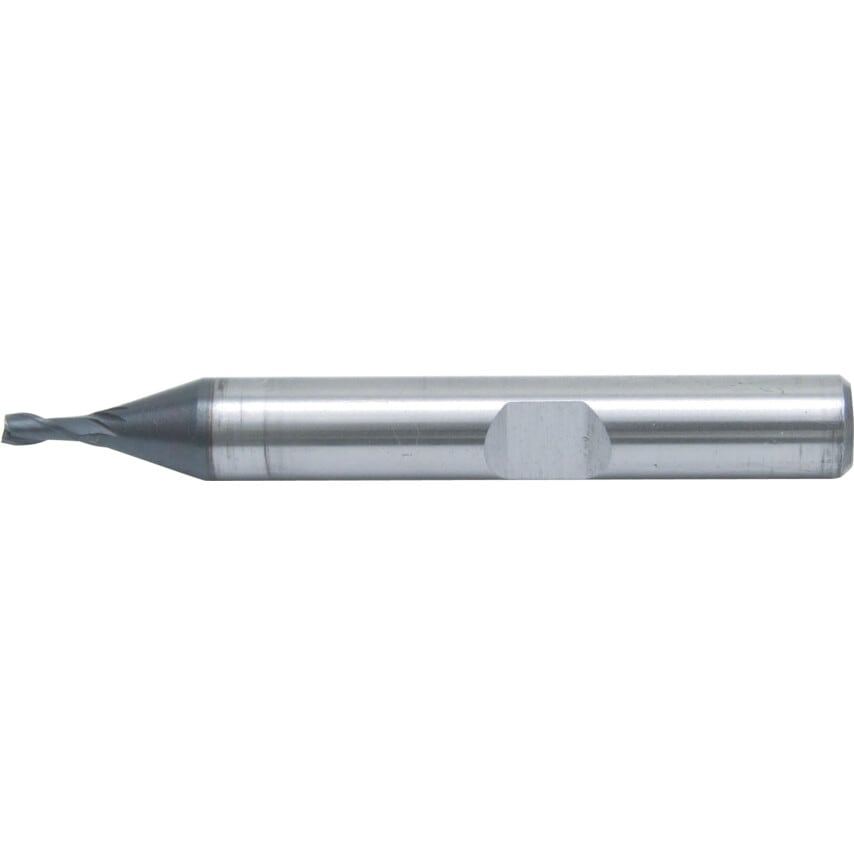

Series 91 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Flute Length | 5mm |
| Product Type | Slot Drills |
| Milling Cutter Type | Slot Drill |
| Shank Type | Weldon Flat |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Shank Diameter | 6mm |
| Flute Type | Helical |
| Cutter Diameter | 3mm |
| Material Grade | M35 |
| Cutter Diameter Tolerance | e8 |
| Overall Length | 49mm |
| Standards Met | DIN 844 | DIN 1835B |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| ISO Designation | P |
| Series | 91 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Finish/Coating | Peak Power Coated |
| Material | Cobalt High Speed Steel |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
