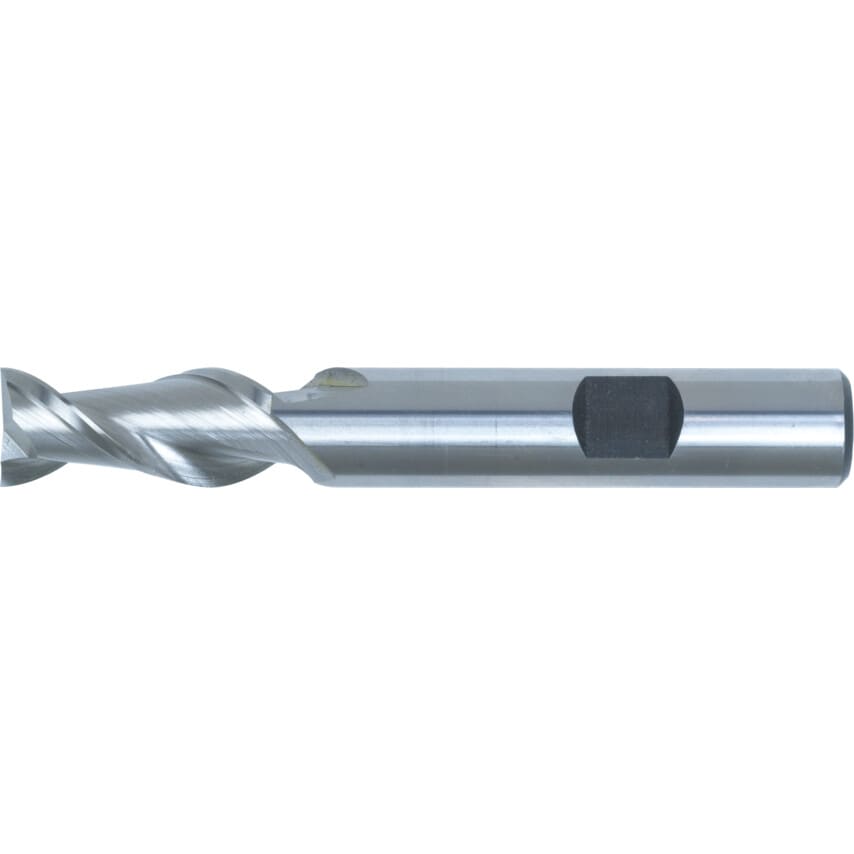

Series 15 - Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.
Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| Shank Diameter | 6mm |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Overall Length | 52mm |
| Helix Angle | 42\u00b0 |
| Cutting Direction | Right Hand |
| Cutter Style | Special Geometry Cutters |
| Flute Length | 8mm |
| Cutter Diameter | 3mm |
| Flute Type | Helical |
| Length Type | Regular |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| System of Measurement | Metric |
| Shank Type | Weldon Flat |
| Plunge Type | Centre Cutting |
| Finish/Coating | Uncoated |
