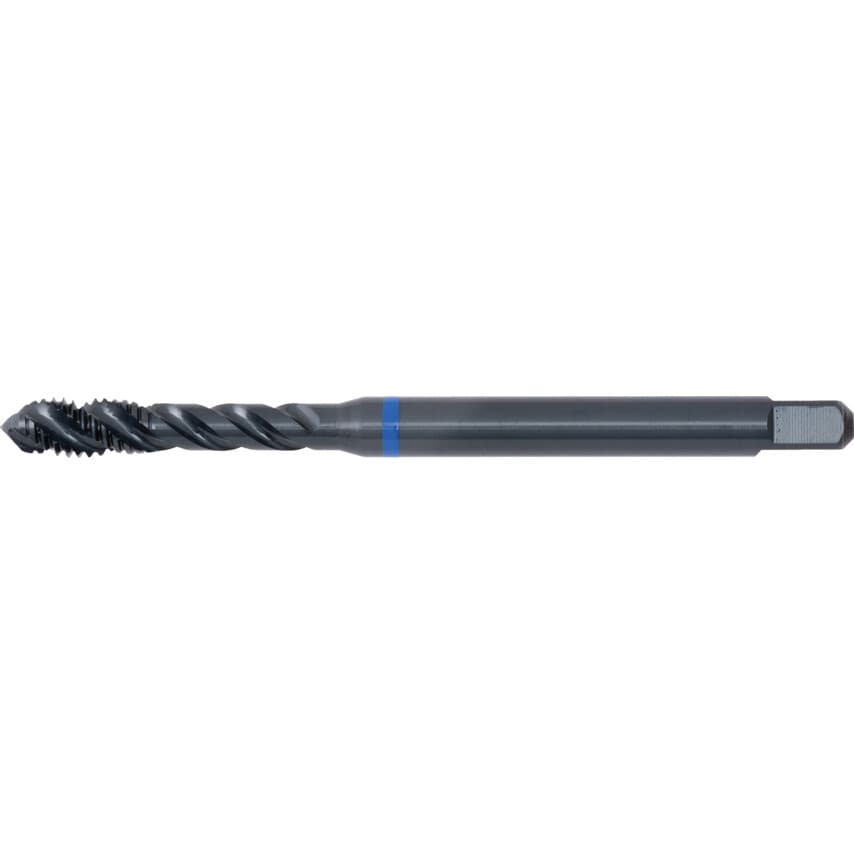

HSS blue ring ISO (BLT) metric coarse oxidised spiral flute taps are made with a strong high speed steel with a black oxide finish for deep blind holes with reduced wear and improved heat resistance.
Features and Benefits
High speed steel construction
Black oxide finish for reduced wear and improved heat resistance
Specification
For deep blind holes
Helix angle 45
BTL - Biteless taper
Taper lead to DIN form C (2 x P to 3 x P)
Tapping tolerance to 6H
DIN 371/376
Typical Applications
Tapping
Steel
Stainless steel
Cast iron
| Overall Length | 110mm |
| Finish/Coating | Steam Tempered |
| Material | Vanadium High Speed Steel |
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hand |
| Material Application | Stainless Steels |
| Class of Fit | 6H |
| Shank Diameter | 12mm |
| Tap Type | Spiral Flute |
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Ring Colour | Blue |
| Square Width | 9mm |
| Helix Angle | 45 |
| Pitch | 2 |
| Tapping Depth | 40mm |
| Dimensions Standard | DIN 376 |
| Thread Length | 20mm |
| Thread Size | M16 |
| Material Grade | M35 |
