Manufactured to DIN 371/376
Suitable for the following Material Groups

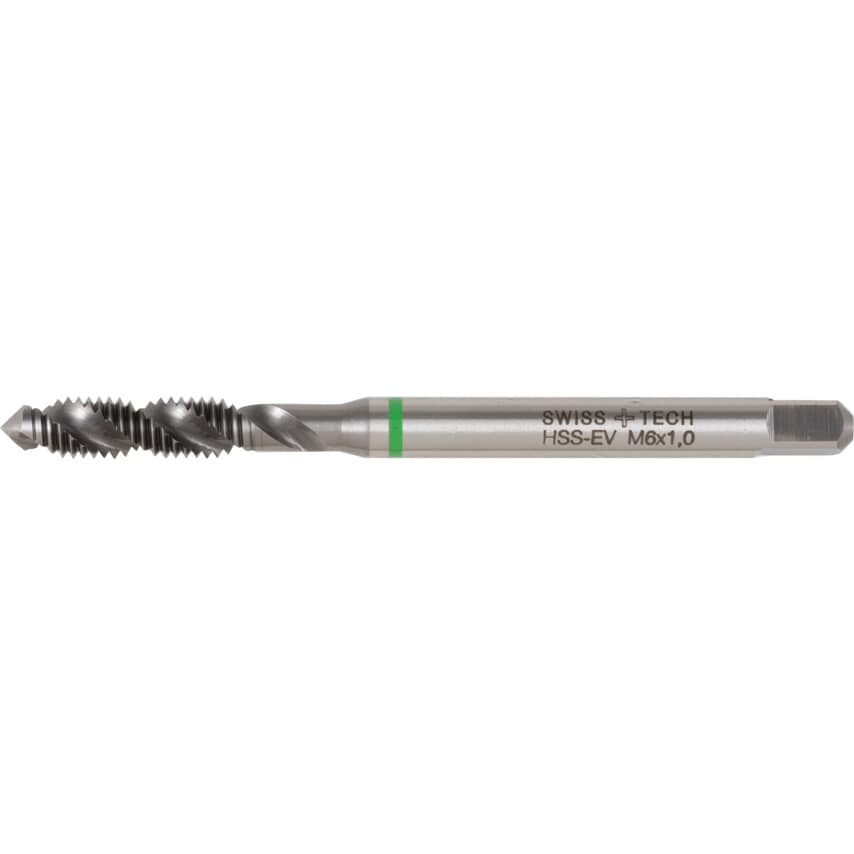

Spiral Flute - HSS-EV Nitride Finish
For blind holes. Taper lead to DIN form C
(2 x P to 3 x P). Tapping tolerance to 6H.
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Square Width | 3.4mm |
| Helix Angle | 45 |
| Tapping Depth | 10.0mm |
| Dimensions Standard | DIN 371 |
| Material | Vanadium High Speed Steel |
| Shank Diameter | 4.5mm |
| Tap Type | Spiral Flute |
| Thread Size | M4 |
| Material Application | Aluminium Alloys |
| Thread Direction | Right Hand |
| Lead | Taper |
| Overall Length | 63mm |
| Thread Standard | Metric Coarse |
| Pitch | 0.7 |
| Ring Colour | Green |
| Thread Length | 13.00mm |
| Material Grade | M35 |
| Finish/Coating | Nitride |
| Class of Fit | 6HX |
