Manufactured to DIN 371/376
Suitable for the following Material Groups

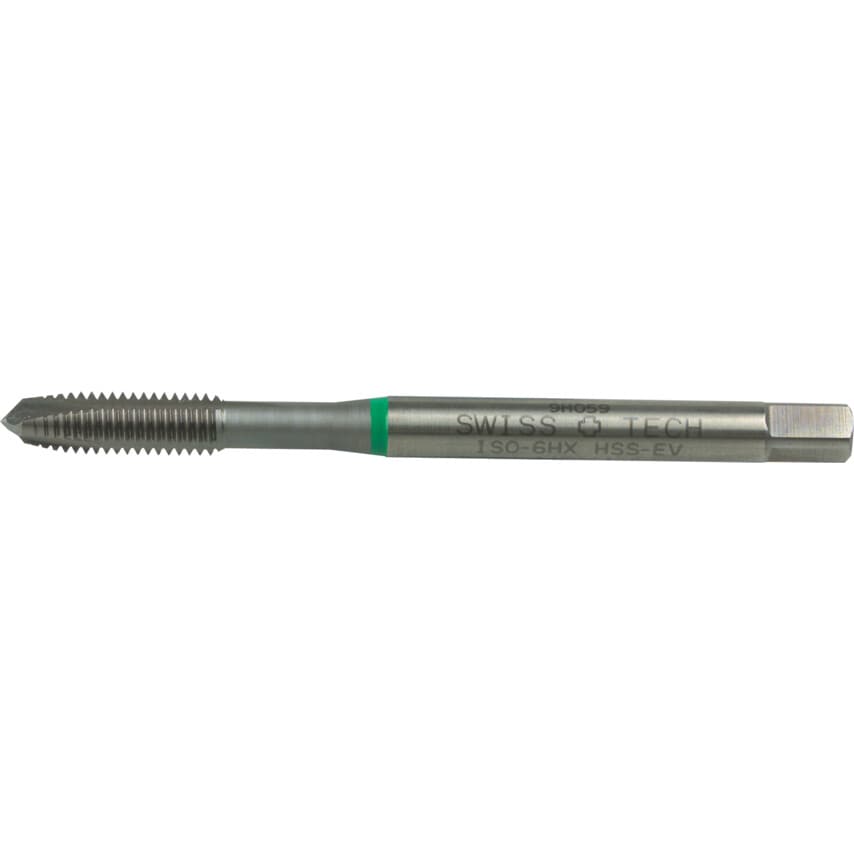

Spiral Point/Gun Nose - HSS-EV Nitride Finish
For through holes. Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
| Tap Type | Spiral Point |
| Thread Direction | Right Hand |
| Material Application | Aluminium | Aluminium Alloys | Magnesium alloys | Zinc Alloys |
| Material | Vanadium High Speed Steel |
| Shank Diameter | 10.0mm |
| Finish/Coating | Nitride |
| Material Grade | M35 |
| Thread Length | 24.00mm |
| Lead | Taper |
| Overall Length | 100mm |
| Thread Standard | Metric Coarse |
| Ring Colour | Green |
| Dimensions Standard | DIN 371 |
| Square Width | 8.0mm |
| Class of Fit | 6HX |
| Thread Size | M10 |
| Pitch | 1.5 |
| Coolant Delivery | External |
| Number of Flutes | 3 |
