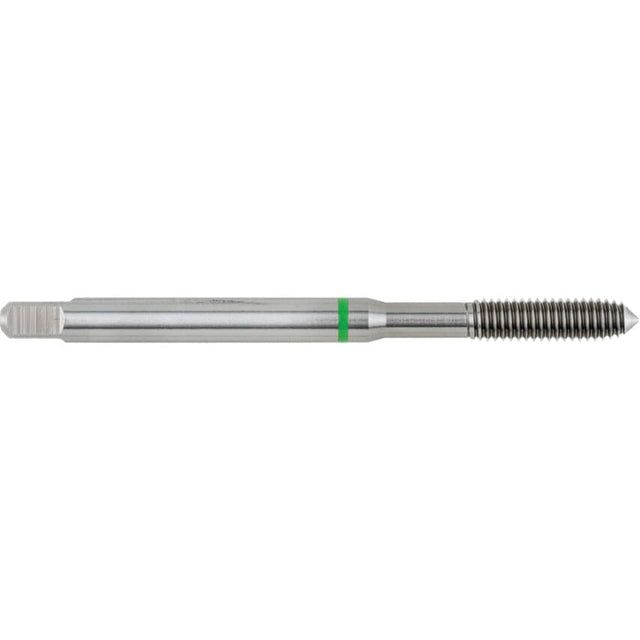

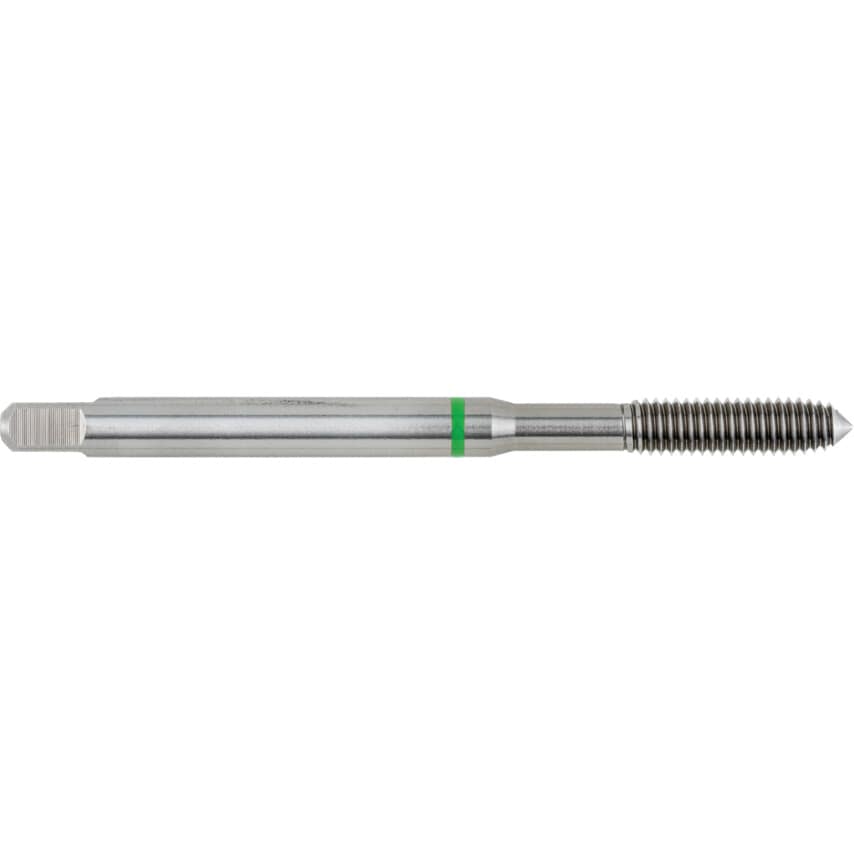

Made from a durable high speed steel HSS-EV green ring fluteless taps are designed for efficient stock removal with their coarse ground construction.
Features and Benefits
HSS construction for excellent durability
Coarse ground for efficient stock removal during machining
Lubrication grooves are a feature of all taps of M3.0 and over
Fluteless with a bright finish for excellent heat and wear resistance
Ideal for through and blind holes
Standards
Taper lead to DIN form B
(3.5 x P to 5.5 x P). Tapping tolerance to 6H
ISO Metric Coarse
| Shank Diameter | 3.5mm |
| Overall Length | 56mm |
| Coolant Delivery | External |
| Thread Length | 11.00mm |
| Thread Direction | Right Hand |
| Finish/Coating | Bright |
| Pitch | 0.5 |
| Ring Colour | Green |
| Material | Vanadium High Speed Steel |
| Class of Fit | 6H |
| Tap Type | Fluteless |
| Thread Standard | Metric Coarse |
| Thread Size | M3 |
| Material Grade | M35 |
| Dimensions Standard | DIN 371 |
| Square Width | 2.7mm |
| Material Application | Brass | Copper |
