Lubrication grooves are a feature of all taps of M3.0 and over. Manufactured to DIN 371/376.

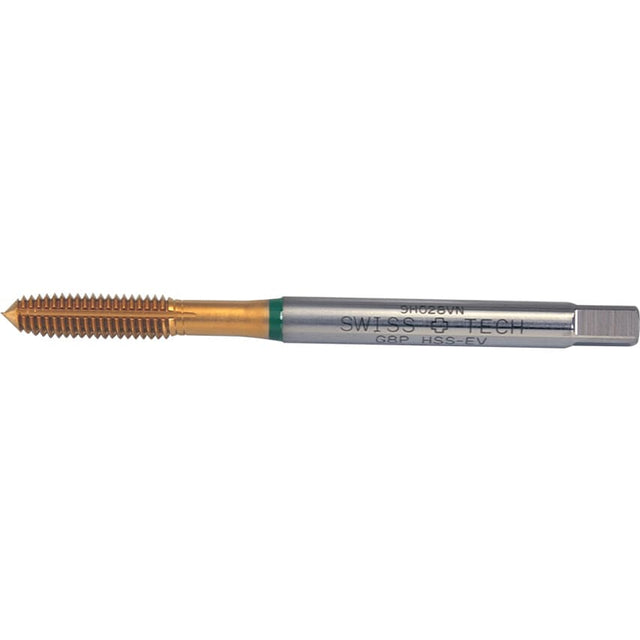

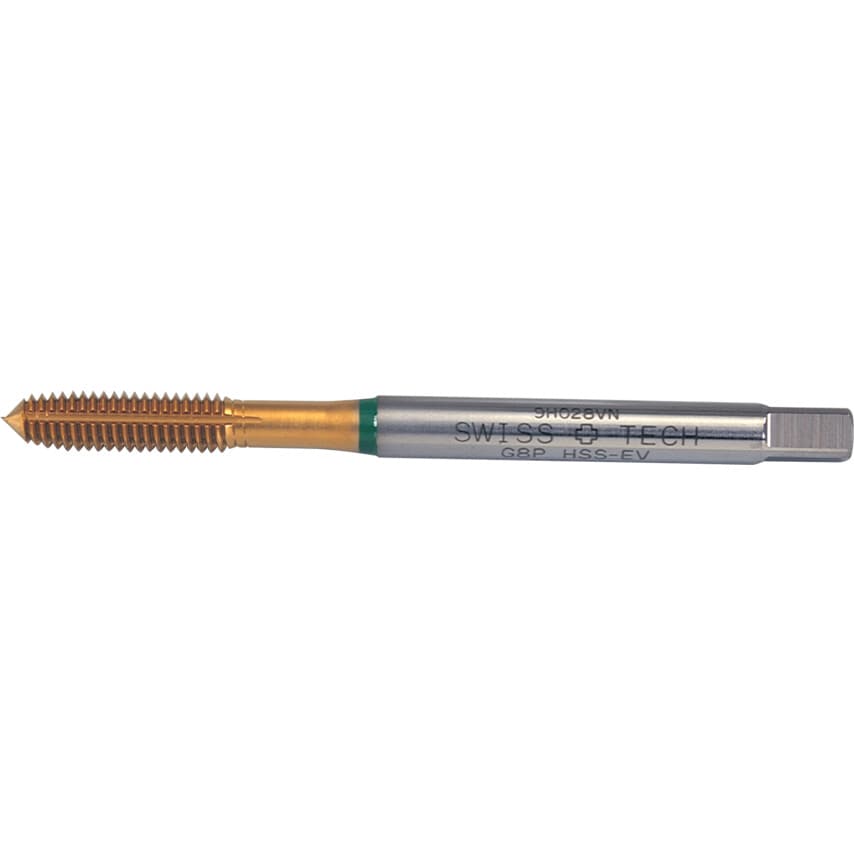

Fluteless - HSS-EV (TiN Coated)
For through and blind holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P). Tapping tolerance to 6H.
ISO Metric Coarse
| Coolant Delivery | External |
| Shank Diameter | 2.8mm |
| Overall Length | 45mm |
| Finish/Coating | TiN |
| Ring Colour | Green |
| Thread Standard | Metric Coarse |
| Square Width | 2.1mm |
| Thread Direction | Right Hand |
| Material Grade | M35 |
| Material Application | Aluminium | Aluminium Alloys | Magnesium alloys | Zinc Alloys |
| Class of Fit | 6H |
| Thread Size | M2 x 0.40mm |
| Material | Vanadium High Speed Steel |
| Pitch | 0.4 |
| Thread Length | 8.00mm |
| Tap Type | Fluteless |
| Dimensions Standard | DIN 371 |
