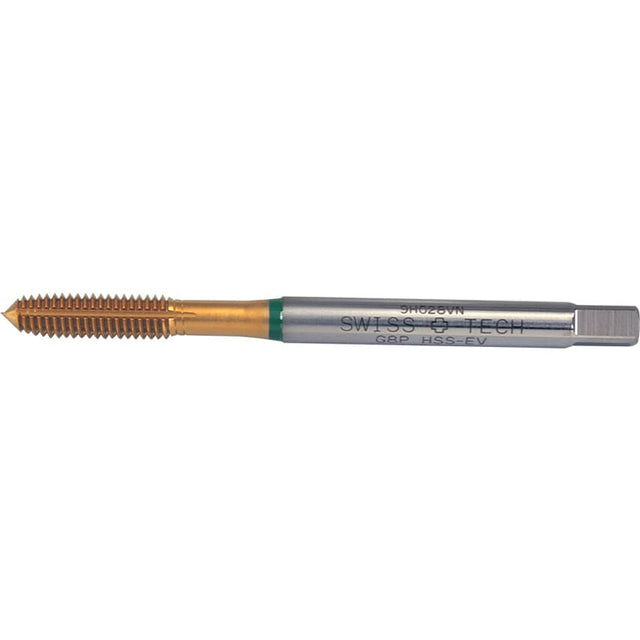

Lubrication grooves are a feature of all taps of M3.0 and over. Manufactured to DIN 371/376.
Fluteless - HSS-EV (TiN Coated)
For through and blind holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P). Tapping tolerance to 6H.
ISO Metric Coarse
| Dimensions Standard | DIN 371 |
| Square Width | 6.2mm |
| Thread Size | M8 x 1.25 |
| Thread Standard | Metric Coarse |
| Pitch | 1.25 |
| Thread Direction | Right Hand |
| Material | Vanadium High Speed Steel |
| Material Application | Aluminium | Aluminium Alloys | Magnesium alloys | Zinc Alloys |
| Coolant Delivery | External |
| Shank Diameter | 8.0mm |
| Class of Fit | 6H |
| Tap Type | Fluteless |
| Overall Length | 90mm |
| Thread Length | 20.00mm |
| Material Grade | M35 |
| Finish/Coating | TiN |
| Ring Colour | Green |
