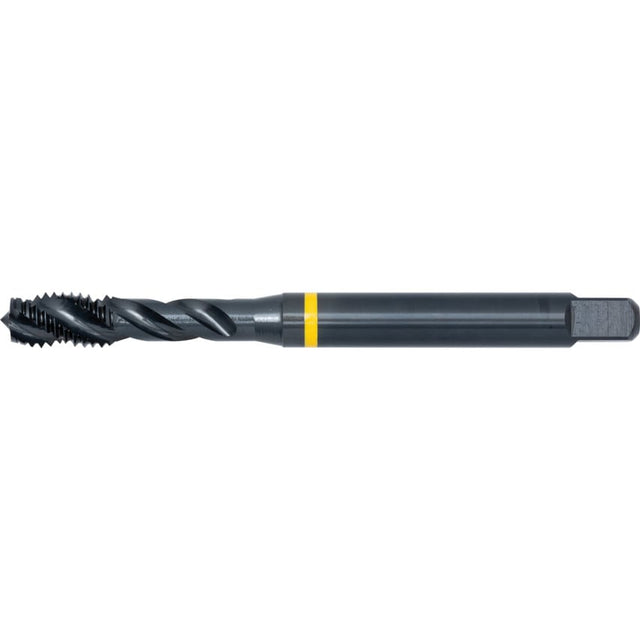

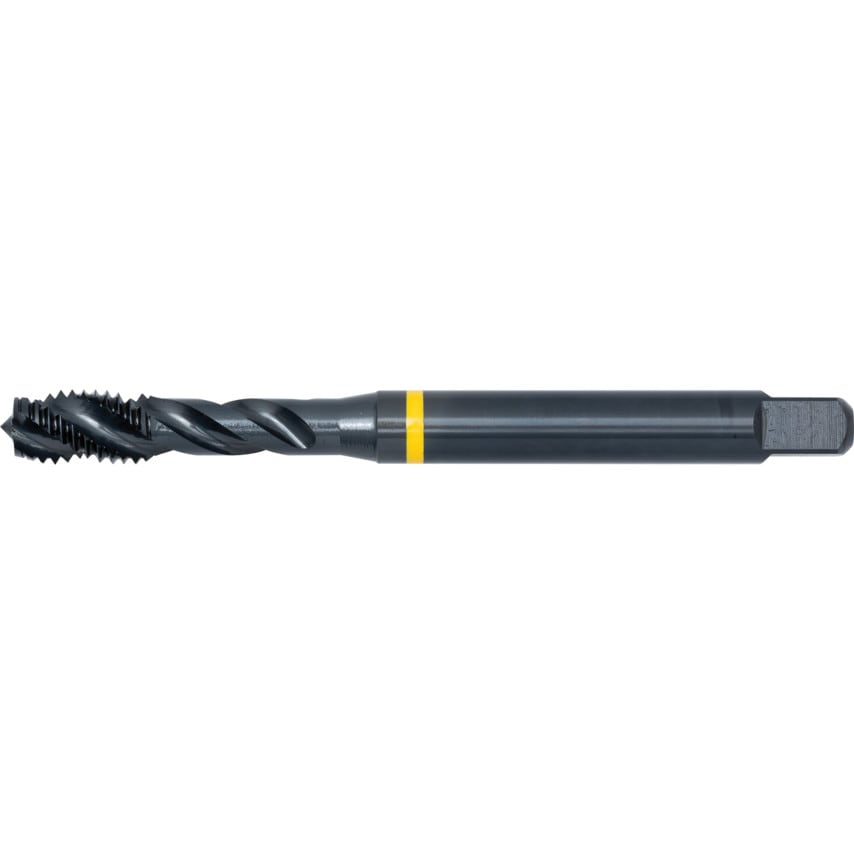

Spiral Flute - ISO Metric Coarse
HSS-EV Oxidised Finish. For blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance: Spiral flute to 6H.
ISO Metric Coarse
Helix angle 40. Tapping depth 2.5 x D.
| Overall Length | 90mm |
| Thread Length | 13mm |
| Shank Diameter | 8mm |
| Square Width | 6.2mm |
| Finish/Coating | Steam Tempered |
| Pitch | 1.25 |
| Coolant Delivery | External |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Material Grade | M35 |
| Dimensions Standard | DIN 371 |
| Material Application | Brass | Bronze | Mild Steel | Non-Alloy Carbon Steel |
| Helix Angle | 40 |
| Thread Size | M8 |
| Material | Vanadium High Speed Steel |
| Tap Type | Spiral Flute |
| Thread Standard | Metric Coarse |
| Tapping Depth | 20mm |
| Ring Colour | Yellow |
