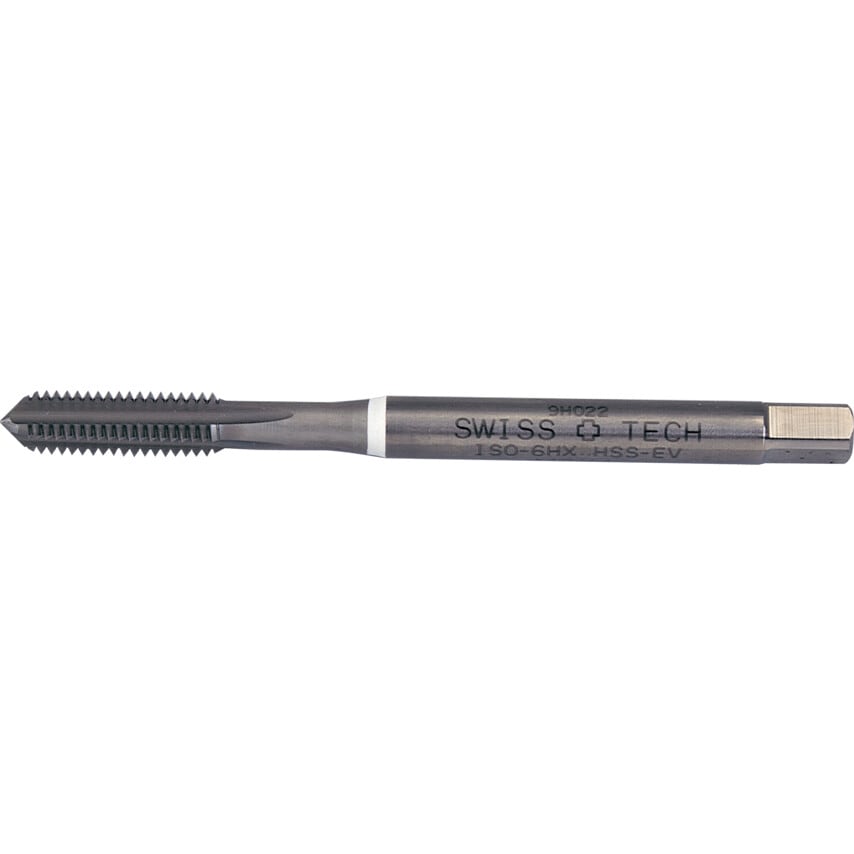

Straight Flute - ISO Metric Coarse
HSS-EV Nitride Finish. For blind holes. Plug/bottoming lead to DIN form C (2 x P to 3 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.
| Shank Diameter | 4.5mm |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric Coarse |
| Ring Colour | White |
| Material Grade | M35 |
| Pitch | 0.7 |
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Class of Fit | 6HX |
| Thread Length | 13mm |
| Thread Direction | Right Hand |
| Thread Size | M4 |
| Tap Type | Straight Flute |
| Finish/Coating | Nitride |
| Square Width | 3.4mm |
| Material Application | Cast Iron |
| Material | Vanadium High Speed Steel |
| Overall Length | 63mm |
