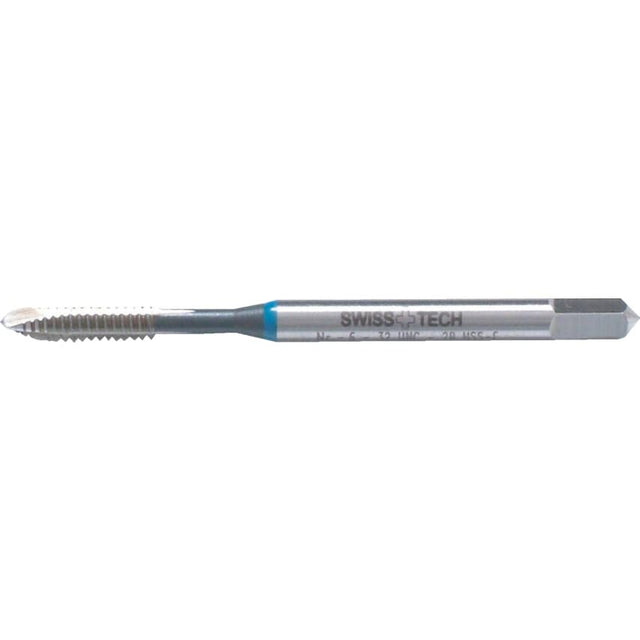

Spiral Point/Gun Nose -
HSS-EV Oxidised Finish
UNC - Unified National Coarse
Bright Finish
Taper lead to DIN form B (3.5 x P to 5.5 x P)
Tapping tolerance to 2B
Manufactured to DIN 371/376
For through holes
Tapping tolerance to 6HX.
| Material Grade | M35 |
| Thread Length | 17.0mm |
| Square Width | 5.5mm |
| Thread Direction | Right Hand |
| Overall Length | 80.0mm |
| Material | HSS |
| Thread Standard | UNC |
| Number of Flutes | 3 |
| Dimensions Standard | DIN 371/376 |
| Teeth per Inch | 20 |
| Finish/Coating | Bright |
| Tap Type | Spiral Point |
| Class of Fit | 2B |
| Pitch | 20.0 |
| Shank Diameter | 7.0mm |
| Thread Size | 1/4in |
